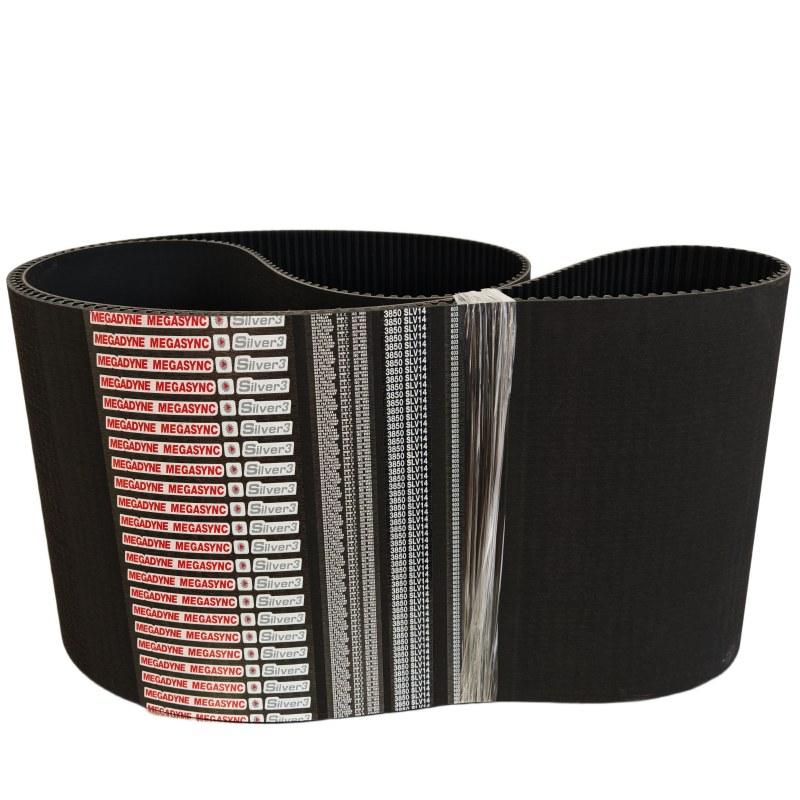

3850-14M-170 3850 SLV14 40 RPP HTD Megadyne Megasync Silver Isoran Timing Belt[/caption]

3850-14M-170 3850 SLV14 40 RPP HTD Megadyne Megasync Silver Isoran Timing Belt

MECHANICAL AND CHEMICAL PROPERTIES

extreme resistance to abrasion
self-lubricating surface
low coefficient of friction
exceptional level of resistance to flex fatigue
medium resistance to water, environmental agents and greases
antistatic, according to BS 2050
SILVER2 belt working temperature: -25°C/+80°C

Rubber timing belt

Description

ISORAN SILVER2

SILVER2 is the new generation of belts made with materials of the highest quality and resistance, to ensure superior levels of performance and an improved power transmission.

Increase of power load capacity by up to +50% compared to the previous version.
Interchangeability with other deep profile systems.

Features

SILVER2 offers a higher power rating up to +50% over the existing SILVER belt range and a wealth of improved properties at the same price.

Retaining the RPP tooth profile of the current SILVER, the new SILVER2 continues to give full functional interchangeability with other deep profile systems. The existing RPP or SILVER systems can be upgraded without replacing the pulleys. In addition, due to improved performance, the more compact dimension optimises space utilisation and cost for all new drive systems.
