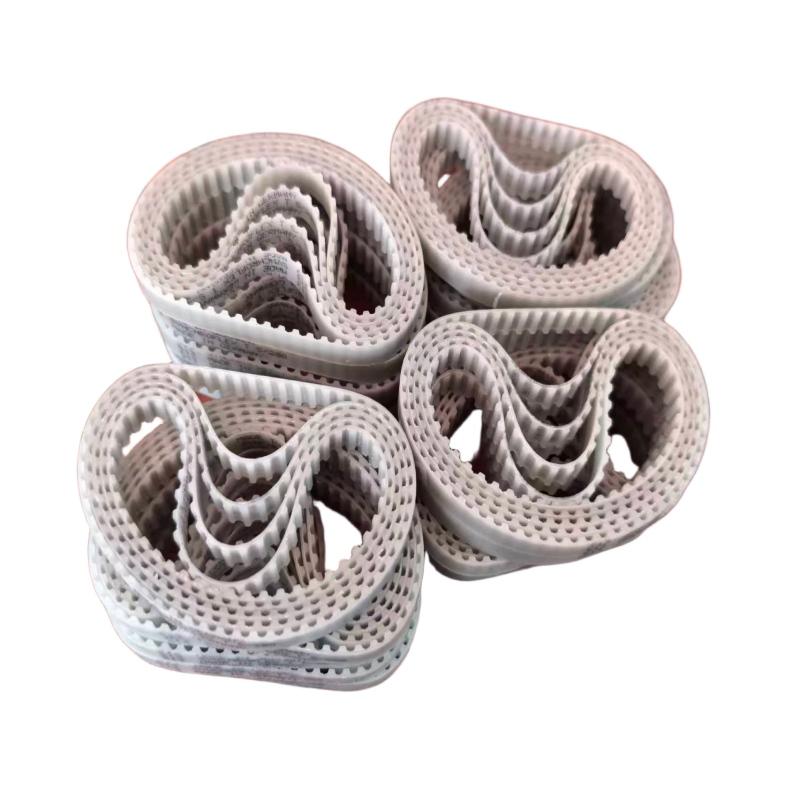

Conti Belt 280 T5S 10 with Steel Cord
- Polyurethane teeth
- Steel cord tension member
- Polyurethane backing
[caption id="attachment_1367" align="alignnone" width="800"]

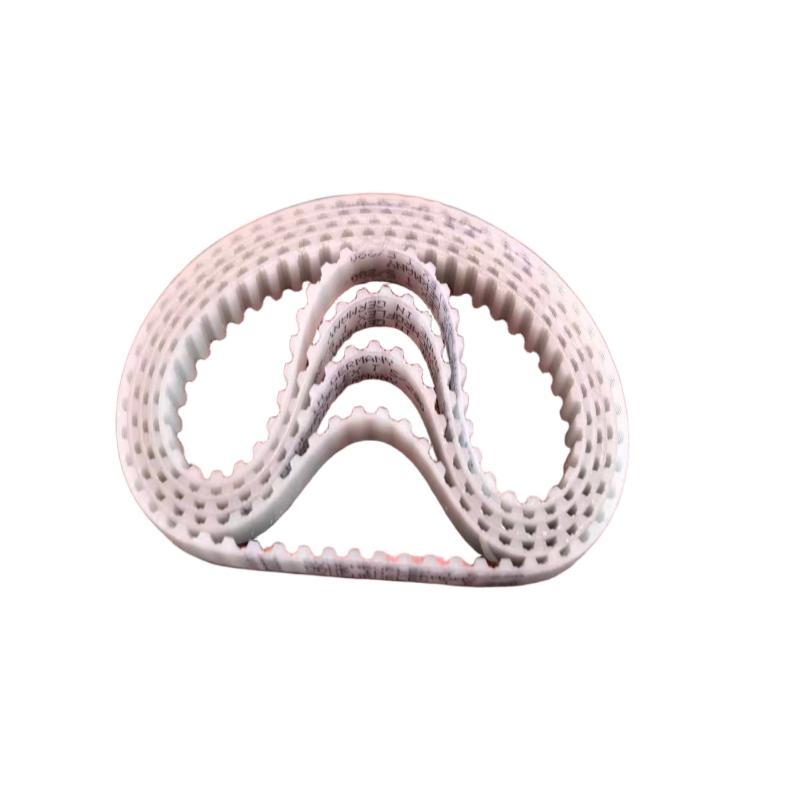

10T5/280 Continental Contitech Polyurethane Synchroflex[/caption]
[caption id="attachment_1367" align="alignnone" width="800"] 10T5/280 Continental Contitech Polyurethane Synchroflex[/caption]
Description
CONTI SYNCHROFLEX is a double-sided endless polyurethane timing belt in a trapezoidal profile for high-performance drive components. It is manufactured according to DIN 7721. It represents a high-performance drive component.
The excellent bond between the hard-wearing polyurethane teeth and the constant-length galvanised steel tension members is the basic on which the high power output potential is built. The range of polyurethane compounds available also enables operation at low temperatures, in clean rooms and in the food industry.
Typical Applications
The polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms,small hand machines to high-performance drives in construction and woodworking machinery.
The polyurethane timing belts are used in all areas, from miniature drives, high-precision positioning and sorting mechanisms,small hand machines to high-performance drives in construction and woodworking machinery.
|
Perfil
|
Gama de longitudes Lw (mm)
|
||
|
Profile:
|
T5 T10 DL
|
||
|
Width (mm):
|
25mm
|
||
|
Brand:
|
ContiTech
|
||
|
Material:
|
Polyurethane
|
||
|
ATP 15
|
1125 – 1560
|
||
|
AT 20
|
1000 – 1960
|
Properties
* High transmission power and long life
* Temperature range from −30 °C do +80 °C
* Resistant to oils, grease and fuel
* Wear-resistant
* Low-noise
* High flexibility
* Suitable for reverse flexing
* Maintenance-free
* High transmission power and long life
* Temperature range from −30 °C do +80 °C
* Resistant to oils, grease and fuel
* Wear-resistant
* Low-noise
* High flexibility
* Suitable for reverse flexing
* Maintenance-free
