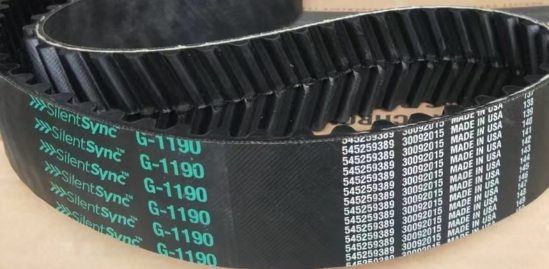

Conti SilentSync G-1190 (H.O.T. 14M-1190-52.5) CONTI SILENTSYNC belt

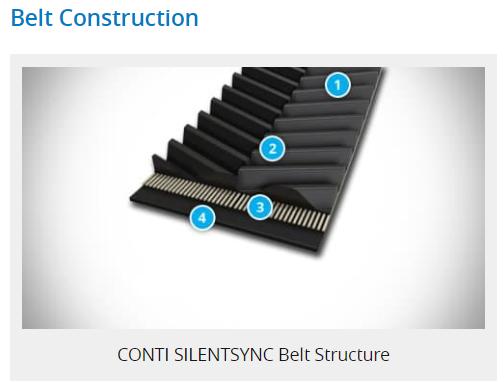

Belt Construction

1. Specially treated fabric
2. Synthetic rubber teeth
3. Aramid tension member
4. Synthetic rubber backing

Other industrial belt

Description

Conti SilentSync G-1190 (H.O.T. 14M-1190-52.5) CONTI SILENTSYNC belt

G-1190 (H.O.T. 14M-1190-52.5) CONTI SILENTSYNC is a reinforced rubber timing belt intended to transmit the highest torques. It is manufactured according to ISO 9563.

They offer a powerful innovation in synchronous drive systems: up to 25% higher transmitted power. They thus become a possible replacement for chain drives. Other advantages include especially up to 19 dB quieter operation than conventional timing belts.

Belt Fields of Use
They are used mainly in machines with high speed and precision, such as machine tools, textile machines, compressors, blowers,
etc.
Belt Characteristics
* High transmission power and durability
* Temperature range, depending on application, from −30 °C to +130 °C
* Antistatic in accordance with ISO 9563
* Very low-noise
* Extremely low vibration
* Resistance to aging and ozone
* Maintenance-free
* Conditionally resistant to oilBelt Material
* Aramid traction fibers
* HNBR rubber
* Specially treated surface JPEX (nylon fabric and highly resistant polyethylene)

Specifications
Profile:	G 14M-52,5
Délka L2 (mm):	z=85
Brand:	ContiTech
Weight (kg):	1.025
Length Ld (mm):	1190,00
Width (mm):	52,50
Material:	HNBR+ARAMID

APPLICATIONS
* Chain drives
* Drives where noise is an issue
* Drives where vibration is an issue
* Any application that requires quiet synchronization between driver and driven sprockets
