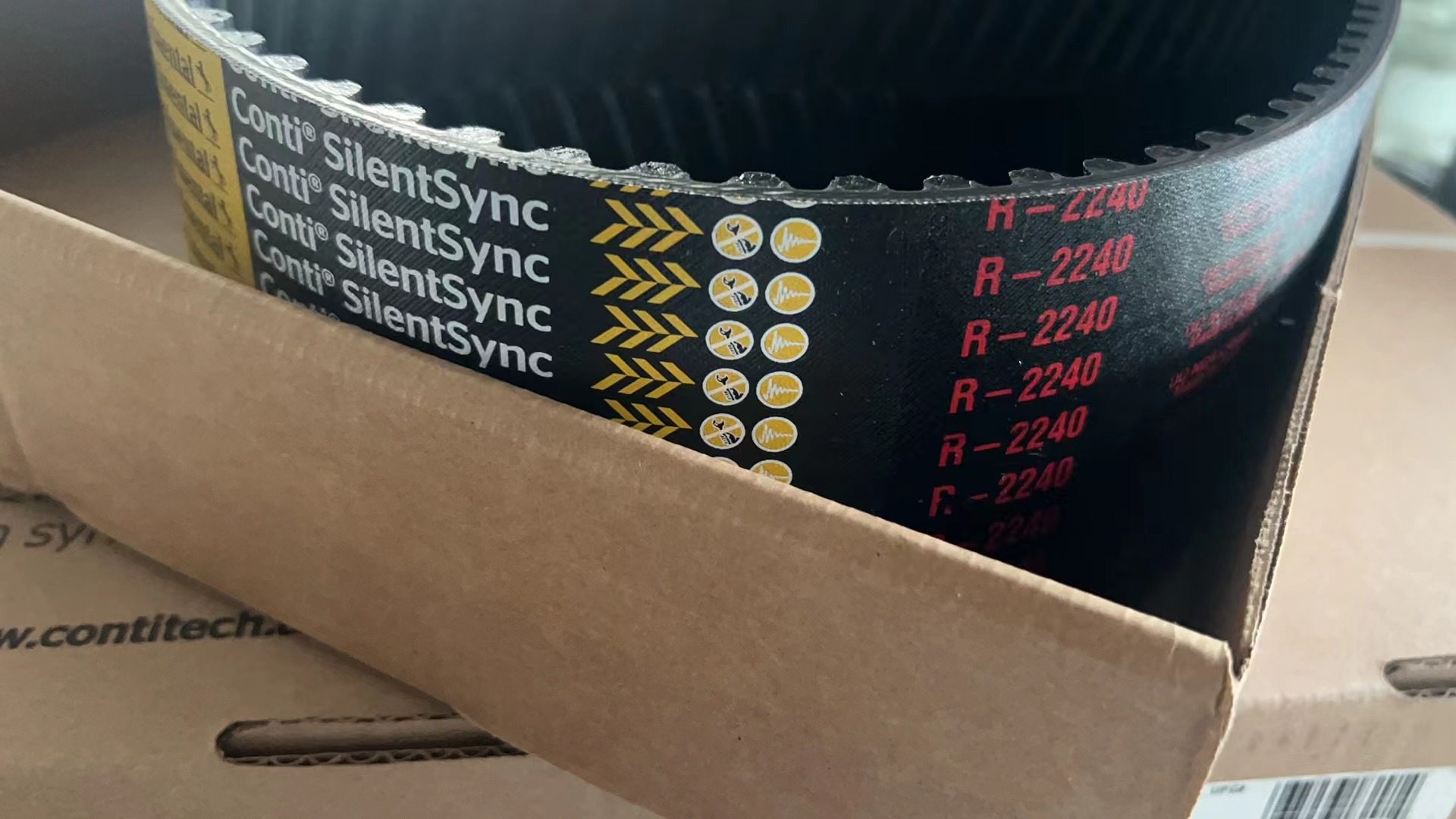

CONTI SILENTSYNC Timing Belt R-2240 toothed synchronous belt

SilentSync Advantages: * Up to 25% more power capacity
* Static conductivity
* Up to 19dB quieter than straight tooth belts
* Over 1,500 possible sprocket combinations
* Rated for continuous service at 200° F
* Up to 98% energy efficiency

Description

Contitech SilentSync Self-tracking timing belts are made very quiet and reduced vibration operation. This makes them the ideal choice for horizontal drives. Additionally, they are conditionally resistant to oil, resistant to aging, and maintenance-free.

SilentSync’s patented Helical Offset Tooth (H.O.T.) design merges belt and sprocket into the quietest, smoothest and one of the most compact synchronous drive packages available. The result is a continuous rolling tooth engagement that reduces vibration and improves the overall efficiency of your drive system.

Specifications
Manufacture	Continental
Pitch Datum MM	14
Number Of Teeth	180
Belt Section	Eagle NRG Red
Outside Length MM	2520
Width MM	105
Outside Length (in.)	99.21
Product Code	62410618000000
Interchange	R2520 Goodyear Eagle NRG, R-2520 Goodyear

APPLICATIONS
* Chain drives
* Drives where noise is an issue
* Drives where vibration is an issue
* Any application that requires quiet synchronization between driver and driven sprockets
