CONTI® SYNCHROCHAIN CTD C8M

Belt Characteristics
* High transmission power and long life
* Oil-resistant
* Ozone-resistant
* Temperature range, depending on application, from −55 °C to +80 °C
* High dynamic resistance up to 40 m/s
* High abrasion resistance
* Maintenace-free
* Suitable for reverse flexing

Polyurethane timing belt

Description

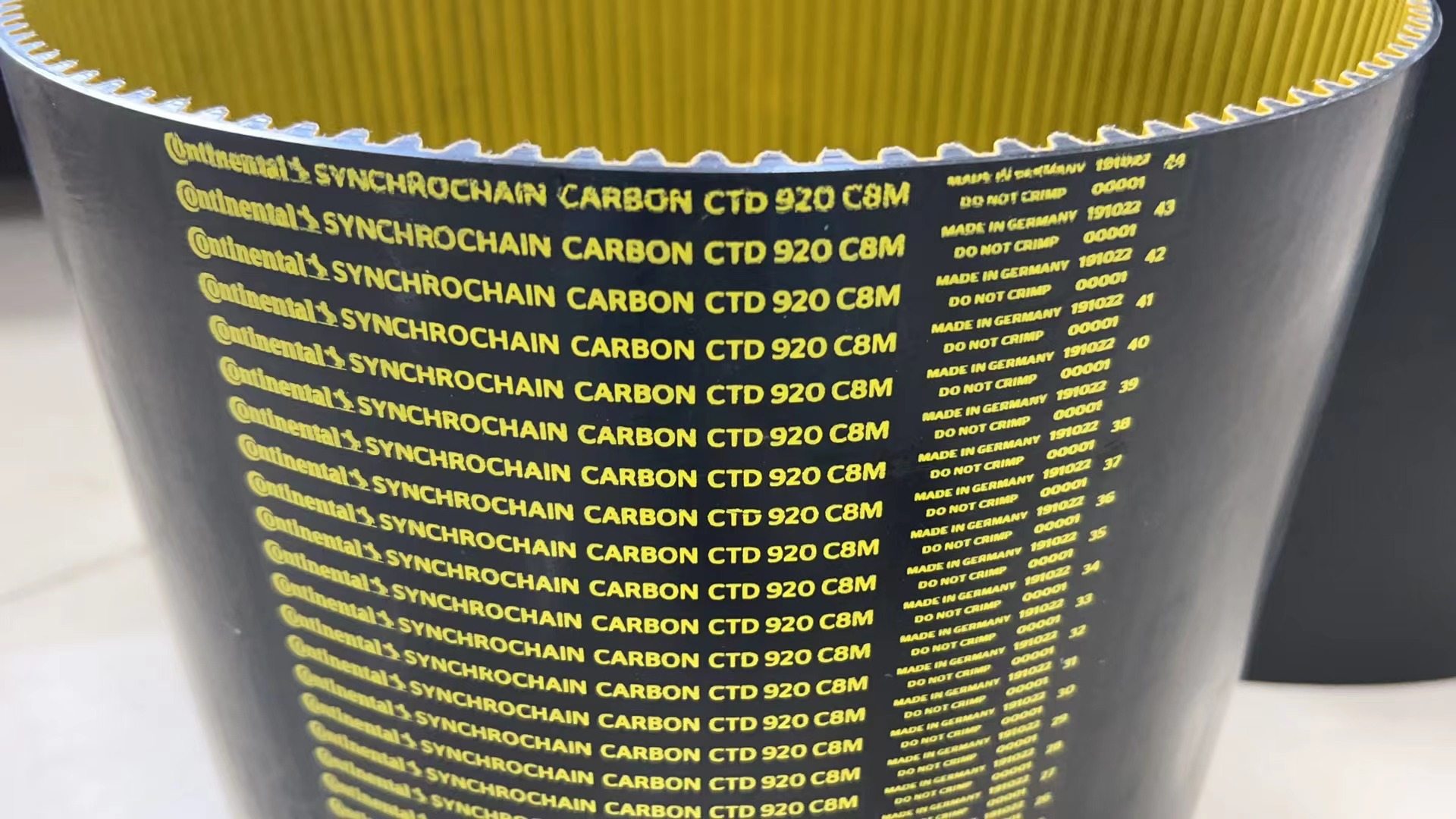

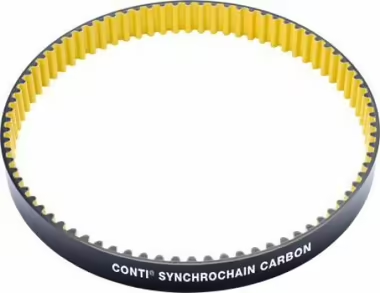

CTD C8M-920-62 CONTI SYNCHROCHAIN CARBON is a timing belt with a special construction and material composition of polyurethane
with carbon tensile fibers are designed for the transmission of the highest power, torque and high dynamic load.
They are an optimal alternative to chain transmissions.

Specifications
Profile:	CTD 8M
Délka L2 (mm):	z=115
Brand:	ContiTech
Weight (kg):	0.230
Length Ld (mm):	920,00
Width (mm):	62,00
Material:	Polyurethane with Carbon Tensile Fiber

Belt Fields of Use
CONTI SYNCHROCHAIN® CARBON are designed for extreme conditions, the highest load and dynamic load capacity.
Thanks to their resistance to moisture, aggressive substances and temperature changes, they find applications from the food industry, packaging machines to equipment in mines, ports, conveyor systems and small go carts.
