[caption id="attachment_998" align="alignnone" width="800"]

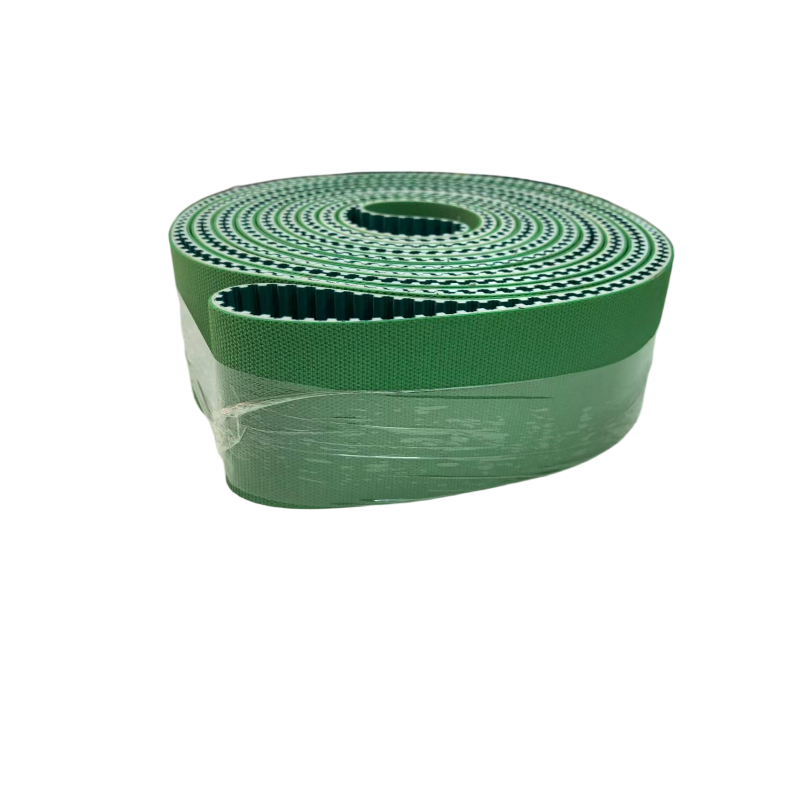

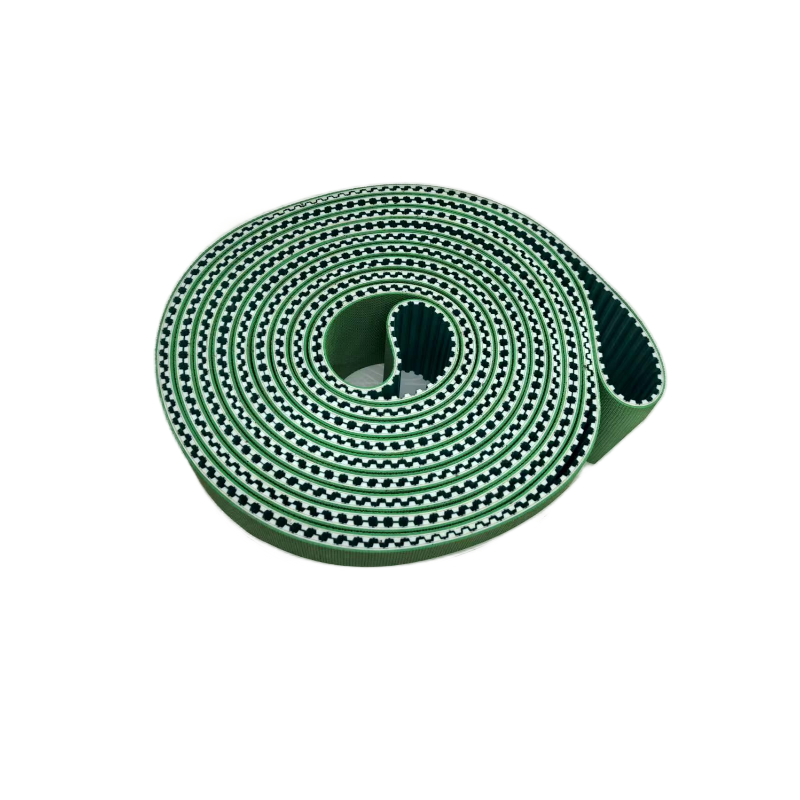

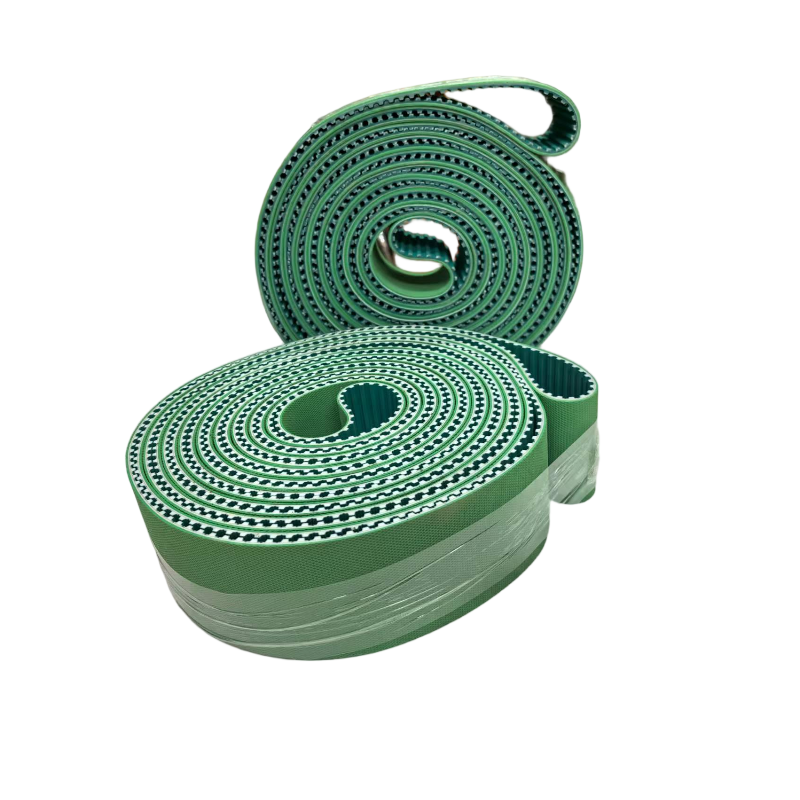

100T10-12330 PAZ Endless Joined with 3mm Rubber Top Cover with Golf Structure[/caption]

Endless Welded T10 PAZ PU Timing Belt

The green cloth used by pu synchronous belt manufacturers is called elastic cloth. This kind of cloth has a certain degree of ductility and can be fitted on the synchronous belt teeth. At the same time, its existence makes a buffer zone exist between the belt teeth and the synchronizing wheel, so that they are no longer mechanical movements during meshing transmission, so as to achieve the effect of reducing noise.

Polyurethane timing belt Tags: Custom products

Description

Type & Size	MXL,XL,L,H,XH,XXH,T2.5,T5,T10,T20,AT5,AT10,AT20,HTD2M- 20M,STPD/STS2M-14M,RPP/HPPD2M-14M; As per the demands of customers
Material	PU Rubber, Steel reinforced, Fabric, Kevlar cord.
Mechanical properties	Dimensional stability; Strong low; Low noise; High wear resistance; No need to maintain; High elastic
Working temperature	-20°C to +80°C, Instant high temperature: +110°C
Working Pressure	≤32Mpa Bud -Shape Ring≤50Mpa
Working Medium	Hydraulic Oil
Characteristics	Aging proof, waterproof, prevent UVA, Ozone-resistant, highly resistant to oil, acid and alkali corrosion resistance
Processing	punch/ slot / pattern / block / guide bar / profile
Colors	White,black,Red,Various
Application	Stone, ceramic,glass,electronics,aluminum,tobacco, textile, logistics,printing,packaging,paper products processing industries etc.

1. Produce all kinds of PU timing belts, including open type, connection type, seamless type, and various models and specifications are complete. 2. Specially processed various PU timing belts, with surface processed rubber (red, green, white), transparent TPU glue, sponge rubber, with surface processed baffles (various shapes and structures), de-toothed, slotted, punched. After the belt surface is thickened, the grooves are horizontally and vertically slotted (according to the specified shape). 3. Production and processing of PVC, PU, PE, silicone conveyor belts, processing guide bars, baffles, skirts. With surface processing wear-resistant rubber (red, green, white), patterned rubber, sponge. The belt can be slotted and punched. 4. Professional wholesale and retail of various types of rubber timing belts, thickened timing belts, and rubber V-ribbed belts, with more than 2,000 stock specifications. 5. Professional processing and wholesale of various domestic film-based transmission flat belts.

Specification

Type	P	P1	ht	hs
L	9.525	4.65	1.91	3.6
H	12.7	6.12	2.29	4.3
MXL	2.032	1.14	0.51	1.14
XL	5.08	2.57	1.27	2.3
XH	22.225	12.57	6.35	11.2
XXH	31.75	19.05	9.53	15.7
Type	P	P1	ht	hs
T5	5	2.65	1.2	2.2
T10	10	5.3	2.5	4.5
Type	P	P1	ht	hs
HTD-3M	3	1.82	1.17	2.4
HTD-5M	5	2.86	2.06	3.3
HTD-8M	8	5.15	3.36	6
HTD-14M	14	9	6.02	10
