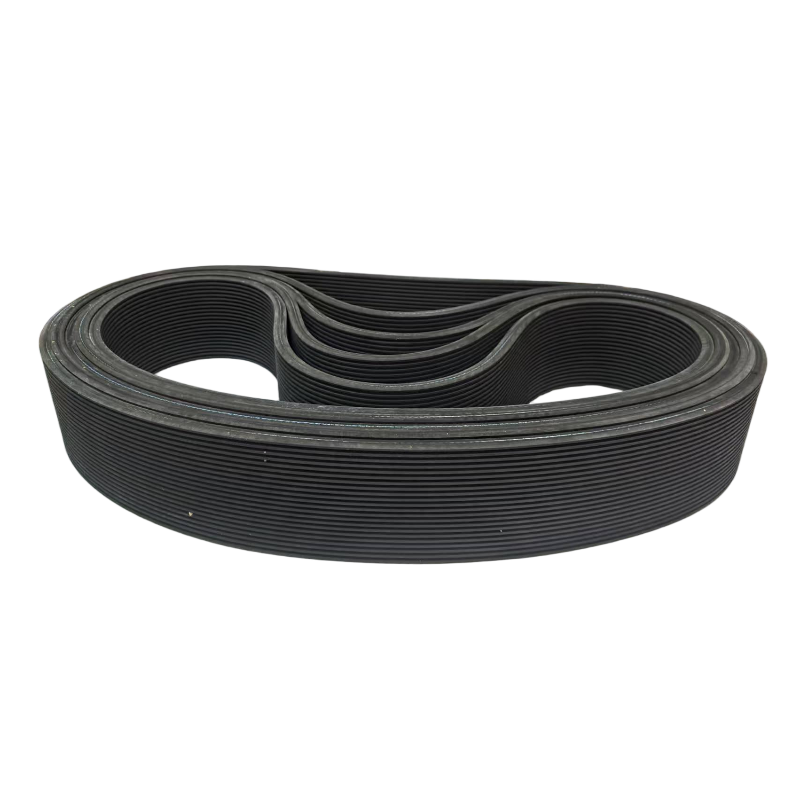

[caption id="attachment_1178" align="alignnone" width="800"]

Dough Mixer Belt 22DPL1765 for Flour Milling Machine[/caption]

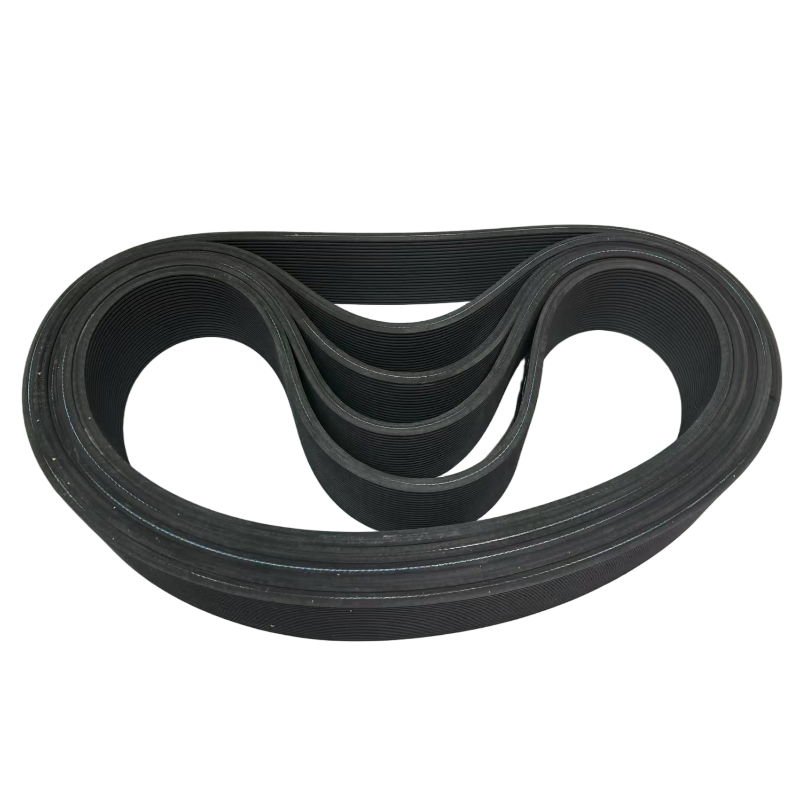

[caption id="attachment_1175" align="alignnone" width="800"]

Dough Mixer Belt 22DPL1765 for Flour Milling Machine[/caption]

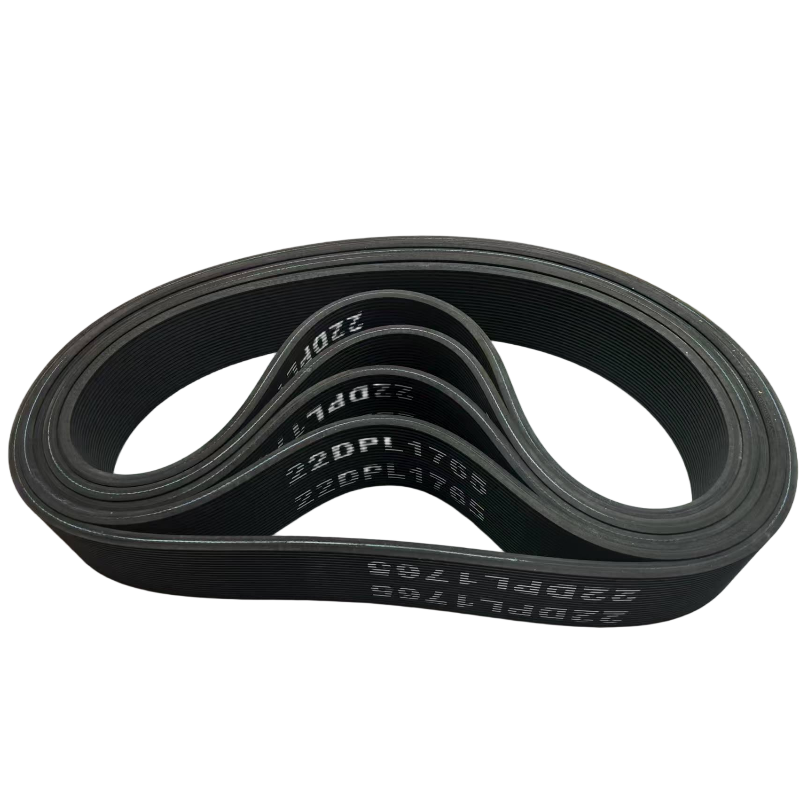

Flour milling machine belt 22DPL1765 (Double sided Poly V belt )

8M or 14M with PK surface Size 1760 8M-B 43/12PK 1552 8M-B 43/12PK Aramid 1552 8M-B 57/16PK Aramid 1778 14M-B 43/12PK2400 8M-B 42/12PK 1760 8M-B 135/38PK 1552 8M-B 43/12PK 1552 8M-B 57/16PK 1552 8M-B 135/38PK 1552 S8M 570/16PK Aramid 1552 S8M 600/17PK Aramid 1760 8M-B 128/35PK or 22 DPL 1760 Aramid

Other belt sizes available on request

Other industrial belt

Description

Referred to as “toothed wedge belt”, it is a transmission belt that transmits power on both sides. One side is RPP/S8M/14M arc tooth timing belt, and the other side is PH/PJ/PK/PL/PM type wear-resistant multi-ribbed belt. , mainly used in flour mills, mills and other grain and oil machinery.

Pulleys

Timing belt pulleys HTD® or RPP® and ribbed belt pulleys section PK and PL

Applications

The timing belt with additional ribbed PK belt section on the backside of the belt is perfect for use in mills, e.g. food, corn, fruit and flour mills, where the backside pulley has a reversable direction and slipping is necessary when the drive blocks.

Advantage

The rubber compound filled with aramid fibres isvery wear resistant. The PK section backside is moulded in one operation with the timing belt.

Product parameters

Roller Mill Belts
Type	Length/mm	Width/mm	Ribs
S8M	1552	57	16PK
S8M	1552	107	30PK
8M	1552	43	12PK
8M	1552	57	16PK
8M	1552	107	30PK
8M	1760	43	12PK
8M	1760	57	16PK
8M	1760	100	28PK
PL	1558	103	22DPL
PL	1764	103	22DPL
PL	1965	113	24DPL
RPP8M	1760	128	36PK

Properties

* temperatur-resistant, depending on application, from -20°C to +100°C * conditionally resistant to oil * ozone-resistant * suitable for tropical climates * aging-resistant * maintenance free

Construction

• Special rubber compound for high frictional grip • Ribbed driving surface for maximum area of contact and reduced surface pressure • Fibre glass cord for high tensile strength, excellent flex life and high resistance to elongation • Polychloroprene rubber teeth for perfect bonding, protecting the cords from oil, grease and moisture • Sprocket side of the timing belt has special woven nylon fabric which is chemically treated to reduce friction it is resistant to heat and abrasion, protecting the teeth from getting damaged
