[caption id="attachment_1321" align="alignnone" width="800"]

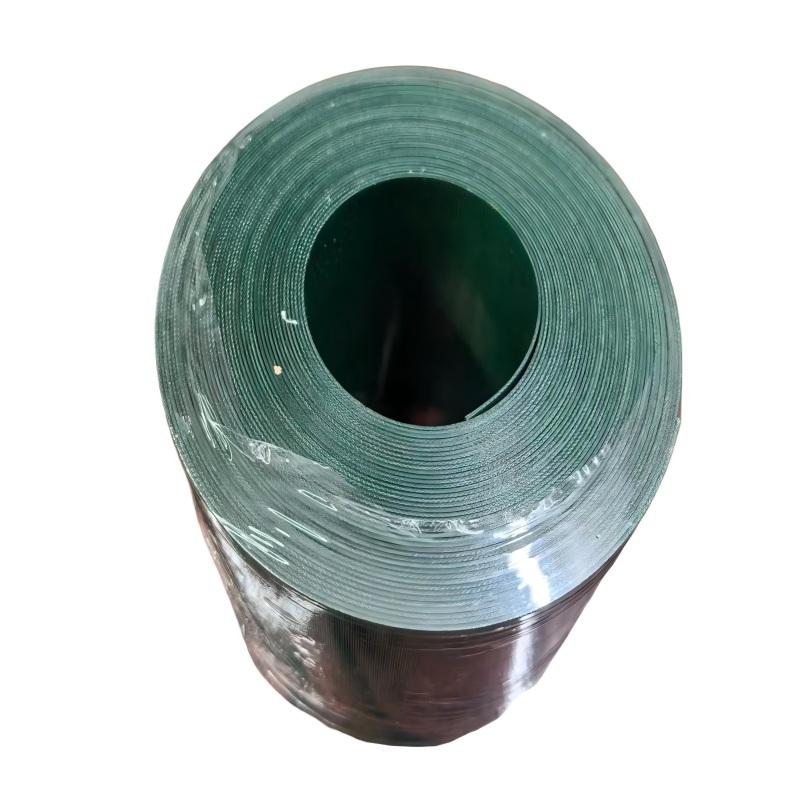

Habasit HNU-8P Belt[/caption] [caption id="attachment_1320" align="alignnone" width="800"]

Habasit-Conveyor-Belt-HNU-8P-Type[/caption]

Habasit conveyor flat belt HNU-8P Polyamide Belt

FEATURES

-Conveying side material: Polyamide (PA) Conveying side surface: Glossy

Conveying side property: Non-adhesive Conveying side color: Green

Traction layer (material): Polyamide (PA) Number of Fabrics: 2

Pulley side material: Polyamide (PA)

Pulley side surface: GlossyPulley side property： Non-adhesive

Pulley side color: Green

Description

Main industry segments: Various industries

Applications: Processing belt

Special features: Abrasion resistant on both sides, Cut resistant, Oil resistant

Product Name	Flat transmission belt
Thickness of belt	1.00 mm
Mass of belt (belt weight)	1.0 kg/m²
Tensile force for 1% elongation (k1% static) per unit of width (Habasit standard SOP3-155)	4.4 N/mm
Tensile force for 1% elongation after relaxation (k1% relaxed) per unit of width (Habasit Standard SOP3-155 / EN ISO 21181)	2.0 N/mm
Min. operating temperature admissible (continuous)	-20 °C
Max. operating temperature admissible (continuous)	100 °C
Coefficient of friction (pulley side / steel driving pulley)	0.15
Coefficient of friction (pulley side / driving pulley with friction cover)	0.35
Coefficient of friction (pulley side / pickled steel slider bed)	0.20
Coefficient of friction (pulley side / phenolic resin slider bed)	0.15
Coefficient of friction (pulley side / stainless steel slider bed)	0.15
Seamless manufacturing width	1140 mm
