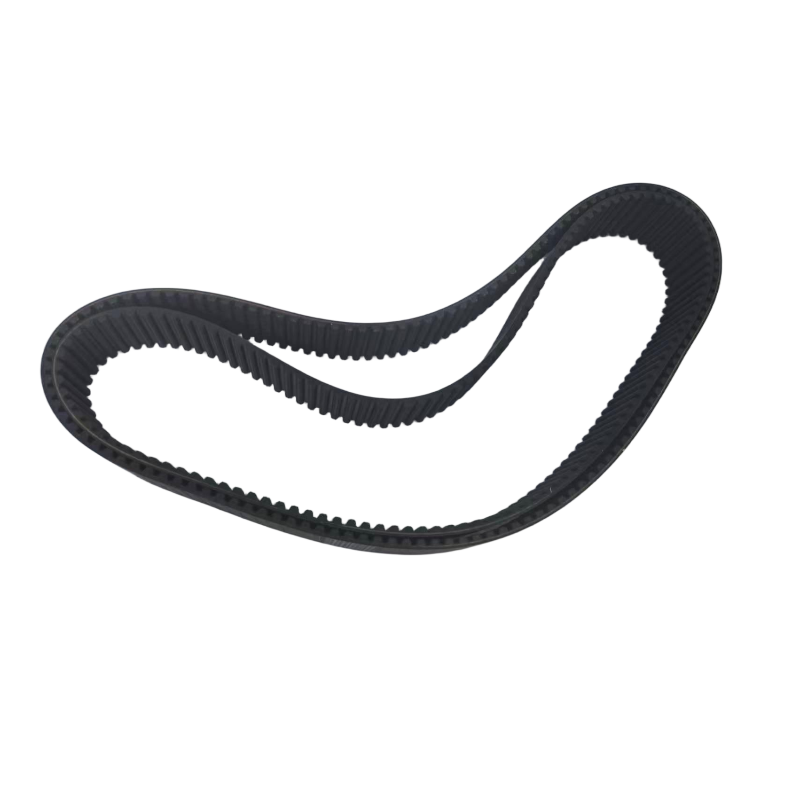

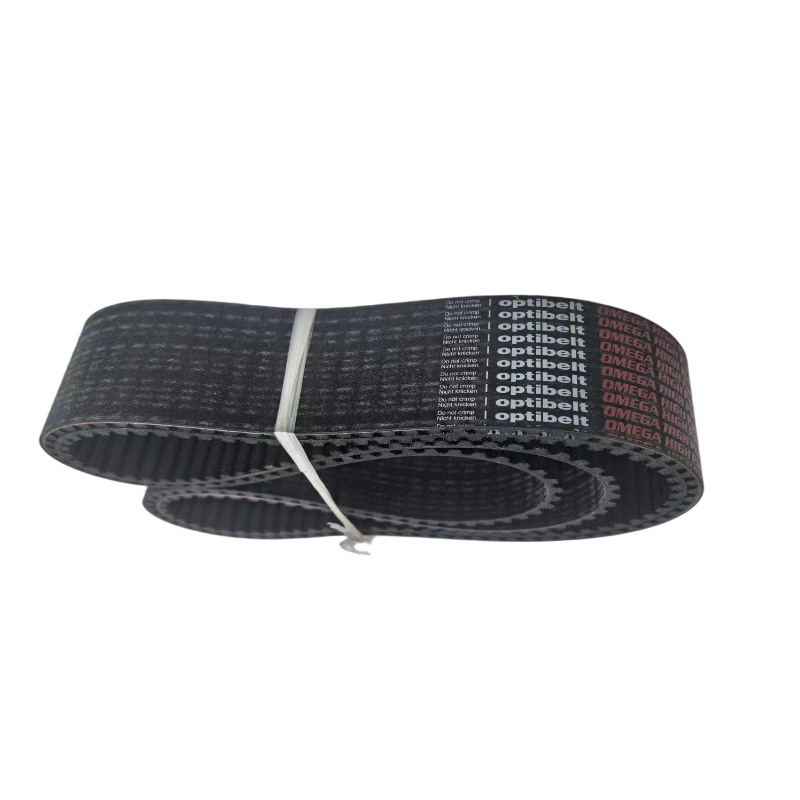

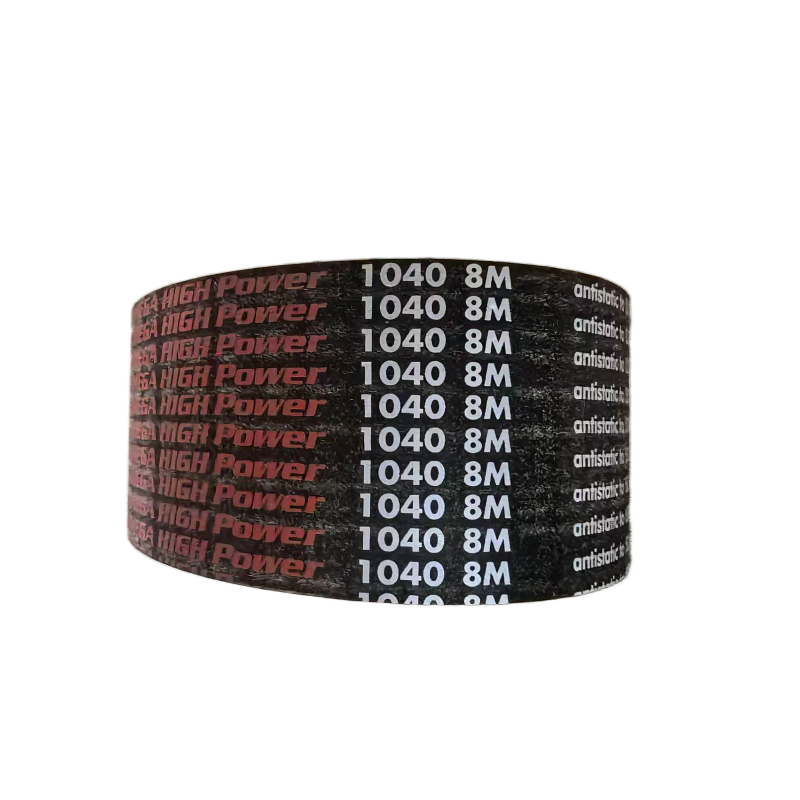

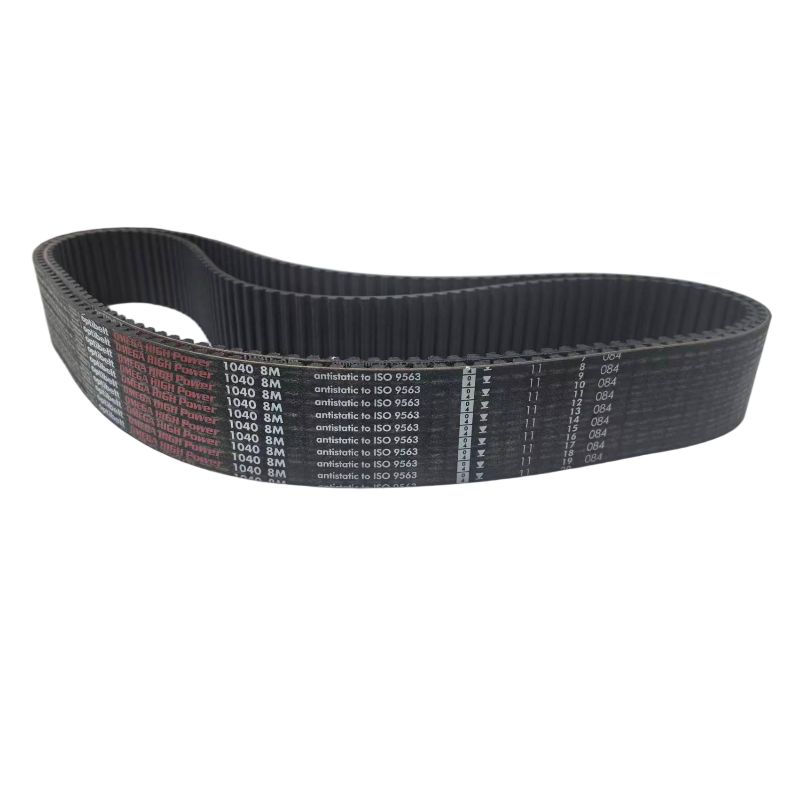

High-performance Timing Belt Optibelt OMEGA 1040 8M Timing Belt

Construction details

Cord
Polychloroprene rubber core. Glass fiber tension cordsWrap
Reinforced polyamide tooth cover. Oil resistant top layer fabric

194209 New-No Box; Optibelt 1040-8M-52 Omega Timing Belt; 1040mm Long; 52mm Wide; 8mm Pitch; 130 Teeth. Item is New

Rubber timing belt

Description

Optibelt’s original timing belt engineered and manufactured to exceed expectations. It starts with the fiberglass cords that
efficiently transmits more power where you need it. The cords are counter wound for smooth, non-biased running. The durable rubber impregnated polyamide fabric increases durability and oil resistance is bonded to the engineered natural & synthetic rubber core.
Fits standard HTD®, RPP®, and MR® pulleys so you get more performance and durability without the need to replace existing pulleys.

Description: High-performance Timing Belt Optibelt OMEGA 1040 8M Timing Belt
• Reference: 1040 8M 52
• Length: 1040 mm Pitch Length
• Width: 52 mm
• Number of teeth: 130
• Pitch: 8 mm
• Total Height: 6.00 mm
• Tooth Height: 3.36 mm
• Material: Flexible neoprene backing, fiberglass tensile cord as reinforcement
The 1040 8M 52 timing belts offer a reliable, economical and trouble-free alternative to chain drives.1040 8M Timing belts.
has been engineered and tested for highly wear resistant performance. The backing is precision ground for smooth uniform running.

Specifications
Belt Pitch	8mm, 14mm
Material	Flexible neoprene backing, fiberglass tensile cord as reinforcement
Tensile Cord	fiberglass tensile cord
RMA Oil and Heat Resistant	Yes
Brand	Optibelt
