[caption id="attachment_1328" align="alignnone" width="800"]

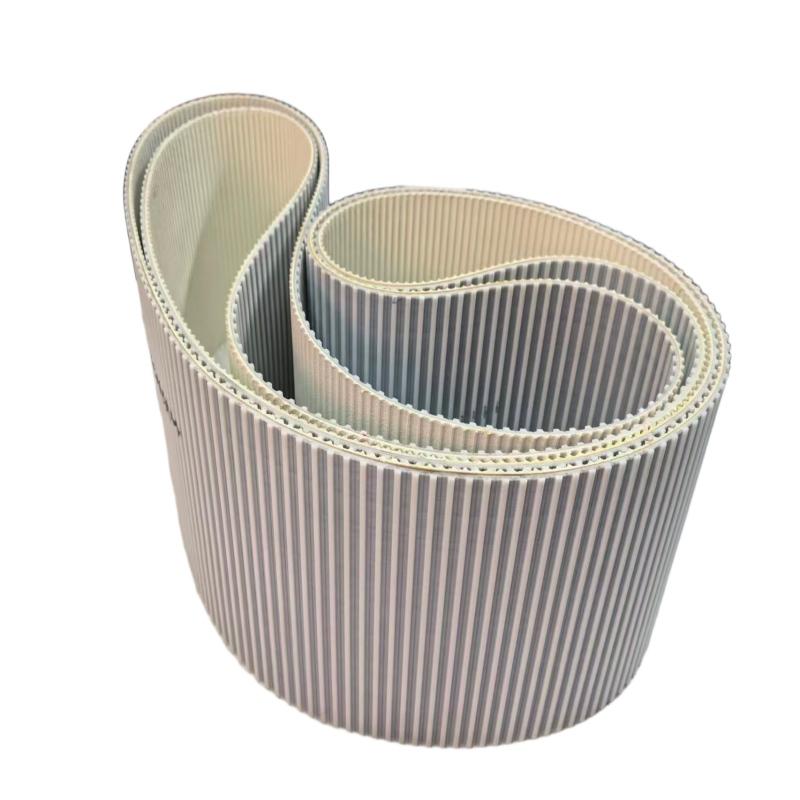

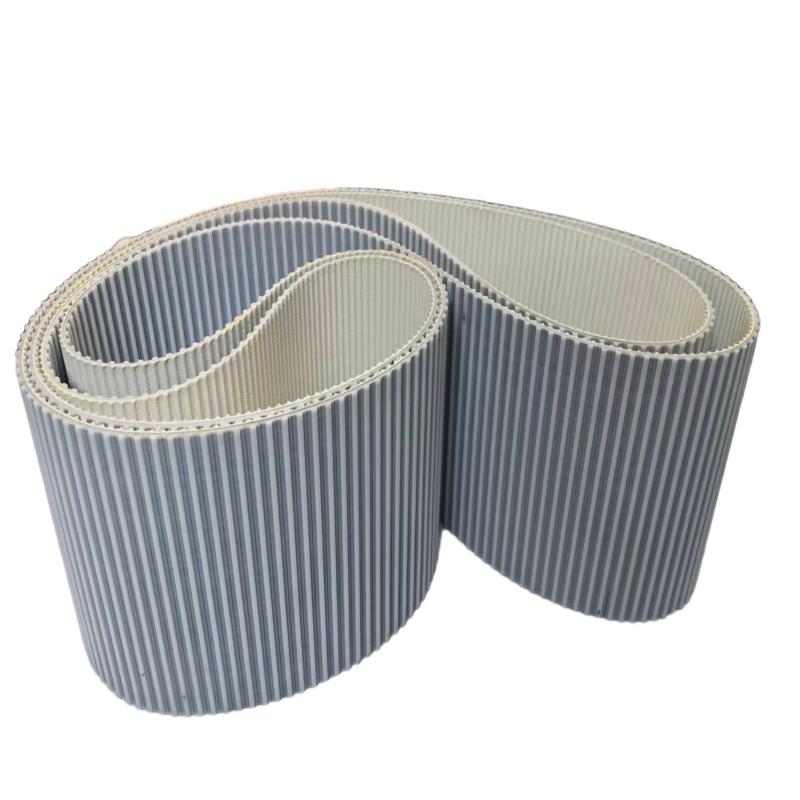

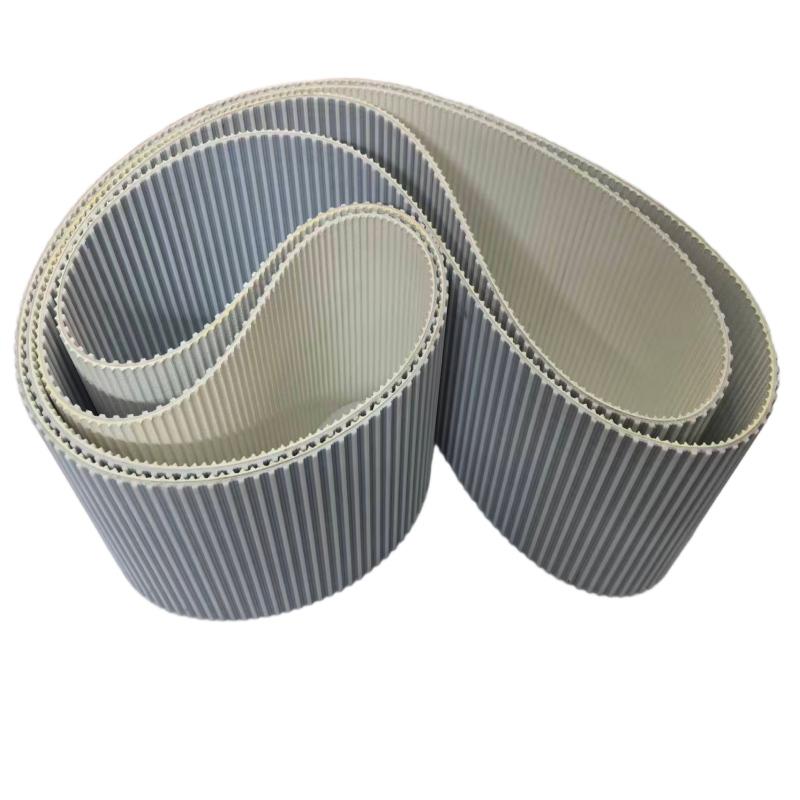

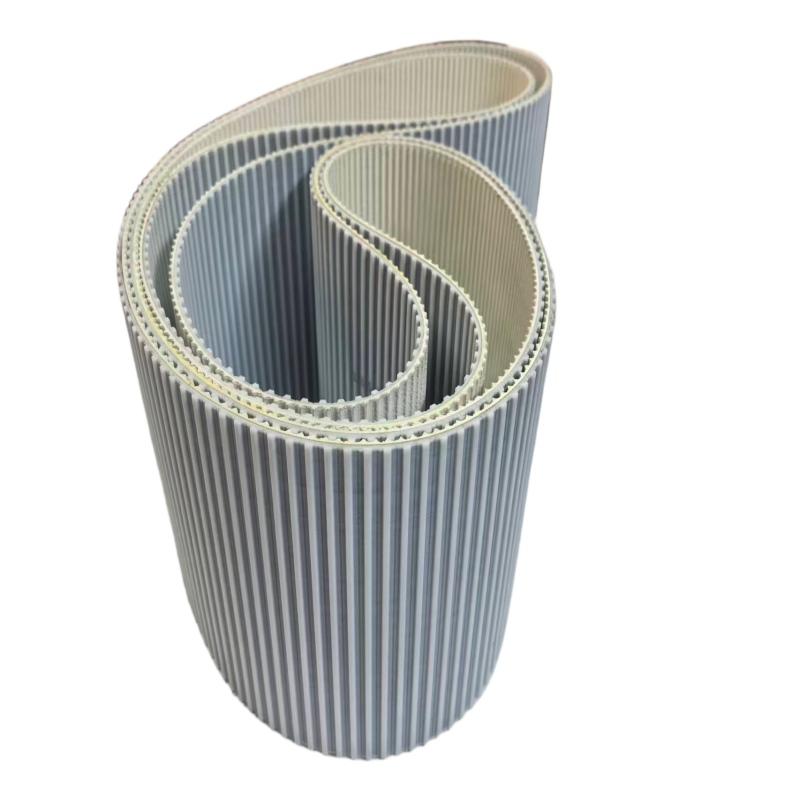

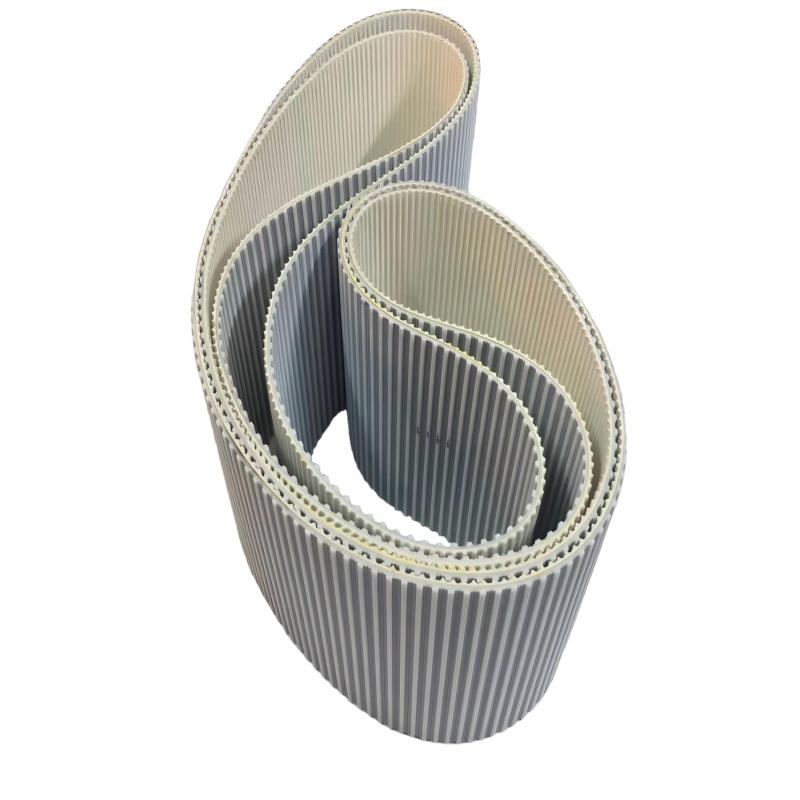

L-2286 PU Timing Belt Processing According to Drawings[/caption]
Timing belts with profiles (also known as cleats) allow for innovative design solutions for dividing, stepping and positioning.
They are made of the same abrasion resistant polyurethane as the timing belts. For whatever conveying purpose we can attach them
in any desired number or sequence.
Timing belt is a belt that connects the camshaft and the crankshaft in a vehicle engine (as in an automobile) and coordinates the opening and closing of the engine’s valves. According to material, there are polyurethane and rubber timing belt, we mainly major in polyurethane timing belt. The PU timig belt has steel core and Kevlar core, the belt we has open ended, endless and flex. The belt surface can add green fabric (PAZ), guide, red rubber and silicone.
|
Type
|
P
|
P1
|
ht
|
hs
|
|
L
|
9.525
|
4.65
|
1.91
|
3.6
|
|
H
|
12.7
|
6.12
|
2.29
|
4.3
|
|
MXL
|
2.032
|
1.14
|
0.51
|
1.14
|
|
XL
|
5.08
|
2.57
|
1.27
|
2.3
|
|
XH
|
22.225
|
12.57
|
6.35
|
11.2
|
|
XXH
|
31.75
|
19.05
|
9.53
|
15.7
|
|
Type
|
P
|
P1
|
ht
|
hs
|
|
T5
|
5
|
2.65
|
1.2
|
2.2
|
|
T10
|
10
|
5.3
|
2.5
|
4.5
|
|
Type
|
P
|
P1
|
ht
|
hs
|
|
HTD-3M
|
3
|
1.82
|
1.17
|
2.4
|
|
HTD-5M
|
5
|
2.86
|
2.06
|
3.3
|
|
HTD-8M
|
8
|
5.15
|
3.36
|
6
|
|
HTD-14M
|
14
|
9
|
6.02
|
10
|
