[caption id="attachment_722" align="alignnone" width="800"] Quality PU timing belt Megapower Megadyne PU sleeve belts

4956PLT14M150 Megadyne RPC 14mm Platinum Belt. The Megadyne Platinum Synchronous Belt is Compatible with Poly Chain, RPP, HTD and PowerGrip GT2 pulleys. Equivalent to part numbers for Gates PolyChain 14MGT-4956-150 and PowerGrip 4956-14MGT-150.[/caption]

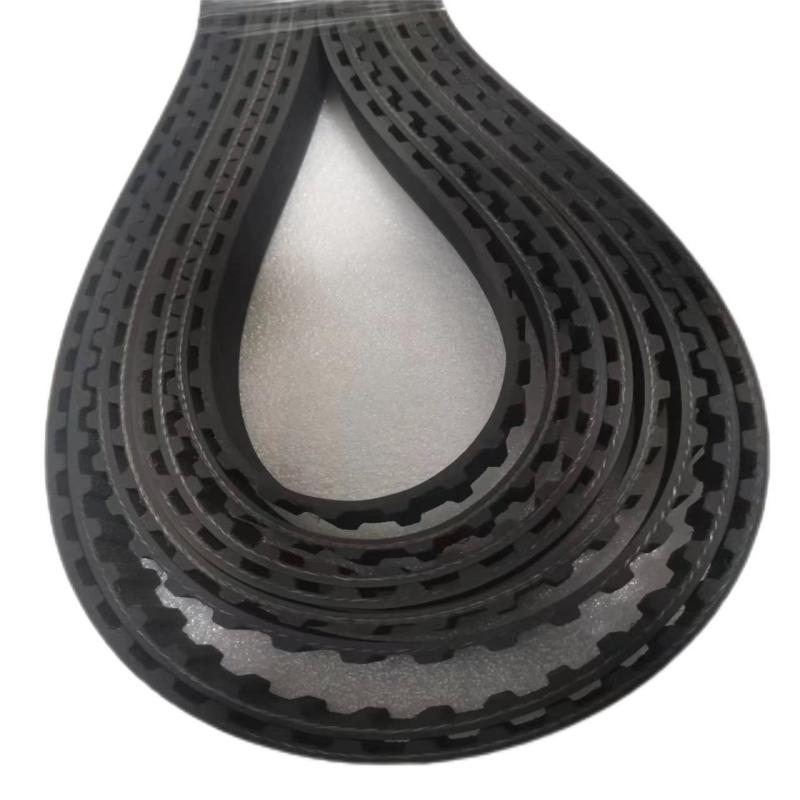

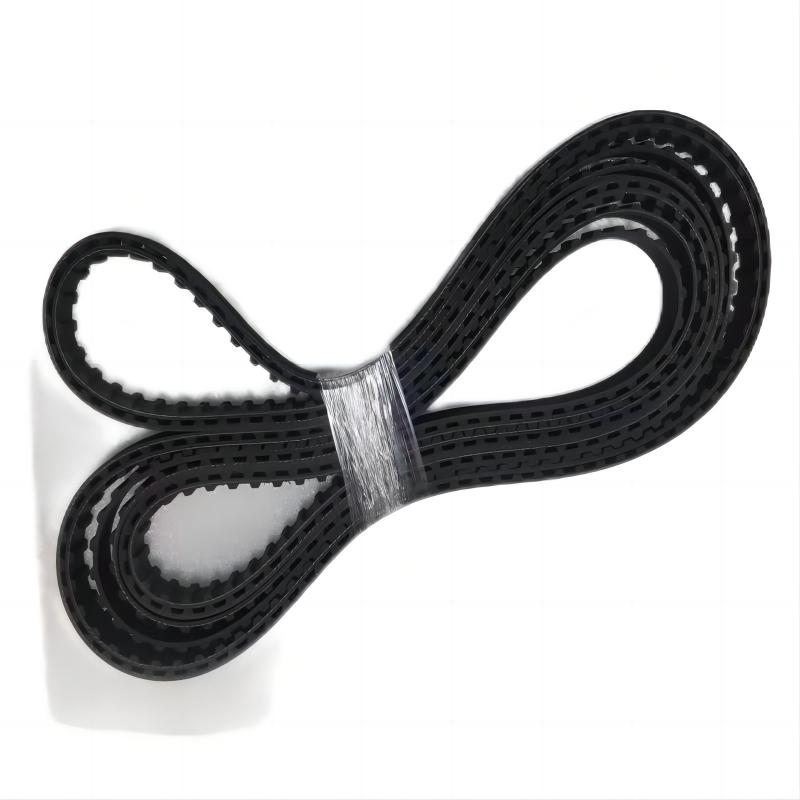

Megadyne Timing Belts 1400 H 225

The Megadyne Platinum Belt is Compatible with Poly Chain, RPP, HTD and PowerGrip GT2 pulleys.

Drop in replacement for Gates 14MGT-4956-150

With PLATINUM, Jason/Megadyne introduces a revolutionalry new “RPC” belt tooth profile. An evolution of the industry standard RPP®, the new “RPC” belt tooth profile is fully interchangeable with HTD®, RPP® and Poly Chain® pulley tooth profiles. The RPC belt tooth profile allows existing drive systems (RPP®, HTD®, PCGT® and PowerGrip® GT® 2) to be upgraded without replacing the pulleys.

Other industrial belt

Description

Megadyne Timing Belts 1400 H 225

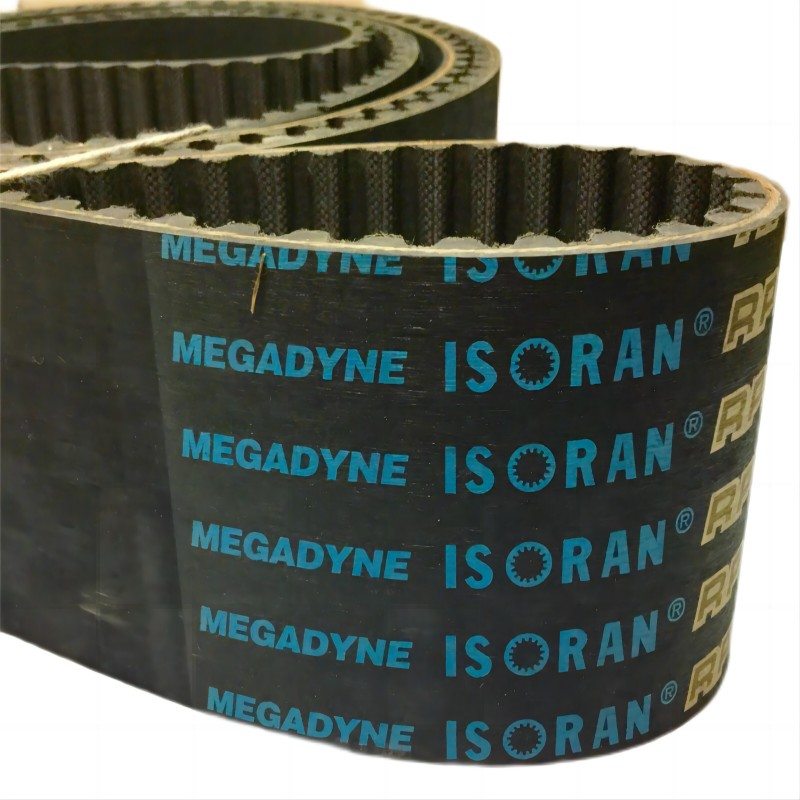

Isoran belts are made with a polychloroprene compound: they are very widely used in several kinds of applications in the field of power transmission.

Megadyne 1400 GLD 14 40mm Wide ISORAN GOLD Timing Belt
Isoran GOLD has been developed to provide a more powerful version of RPP and Silver belts. It is suitable for a very wide range of applications in power transmission. This type of belt combines the advantages of gears and Poly-V belts, minimizing the drawbacks of both.
GOLD belts feature the RPP profile, designed also to be interchangeable with existing deep groove profiles and to run on pulleys according to ISO 13050.

Features & Benefits

* RPC Tooth Profile Compatible with Poly Chain®, RPP®, HTD®, PCGT® and PowerGrip® GT® 2 pulleys
* Highest Power Capacity Reduced belt and pulley width produce less noise, reduces drive weight, bearing load and cost, with
increased efficiency and energy savings
* Dual Core Hybrid Tensile Cord Guarantees high power capability and maintenance-free operation
* Available in Any Width Unlimited width possibilities. Jason/Megadyne will cut to desired width
* Greater Length Range Over 70 different lengths available more than any competitor
* Lower Noise HNBR Rubber based technology is quieter than polyurethane belt
* High Temperature Capability Up to 239 deg F verses 185 deg F for polyurethane
* HNBR Rubber Construction Better flexibility than polyurethane belts Important for drives with idlers
* Engineering Standards Conforms to ARPM IP-27 and ISO 13050 standard tolerances

Construction

* Compound HNBR with high resistance to petroleum oils and solvents
* Tensile Cord Dual Core Hybrid
* Tooth Cover Specially treated nylon fabric to reduce friction and pulley wear
