[caption id="attachment_690" align="alignnone" width="800"] Mitsuboshi Belting FLEXSTAR Belt FL FM FH FLEG FLG FHG Type[/caption] [caption id="attachment_689" align="alignnone" width="350"] Mitsuboshi Belting FLEXSTAR Belt FL FM FH FLEG FLG FHG Type[/caption] [caption id="attachment_687" align="alignnone" width="800"] DESCRIPTION
Specifications
Product
Flexstar Flat Belt
Belt Width (mm)
50
Material
Rubber
Type
Flexstar belt
Belt Length (mm)
1060

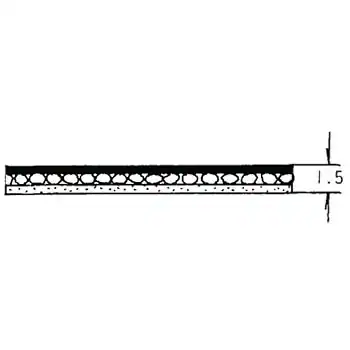

Belt Thickness (mm)
1.5
Maximum Speed (m/sec)
60
Minimum Pulley Diameter (mm)
16
Mitsuboshi Belting FLEXSTAR Belt FL FM FH FLEG FLG FHG Type
Mitsuboshi Belting FLEXSTAR Belt FL FM FH FLEG FLG FHG Type
It is a flexstar belt that can be compactly designed because the belt is thin, has excellent flexibility, and can be used with small diameter pulleys. In addition, the uniform thickness of the belt reduces vibration and allows transmission at high speeds.
Frictional Forced Power Transmission High Tension Flat Belt FLEXSTAR High performance transmission, with a compact design and low cost.
Mitsuboshi Flexstar Belt FL850
Mitsuboshi Flexstar Belt FL850[/caption]
