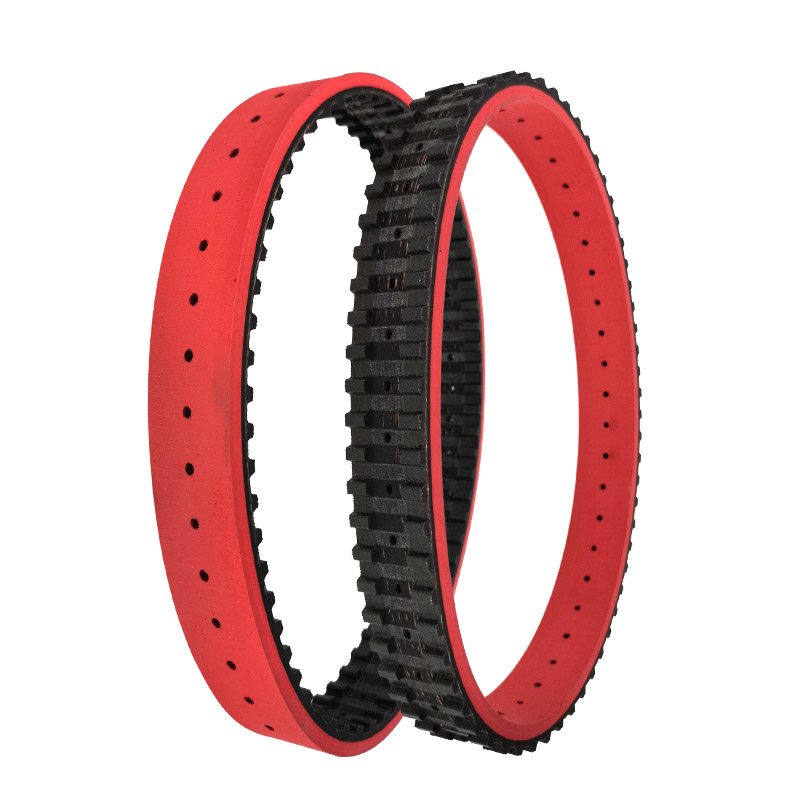

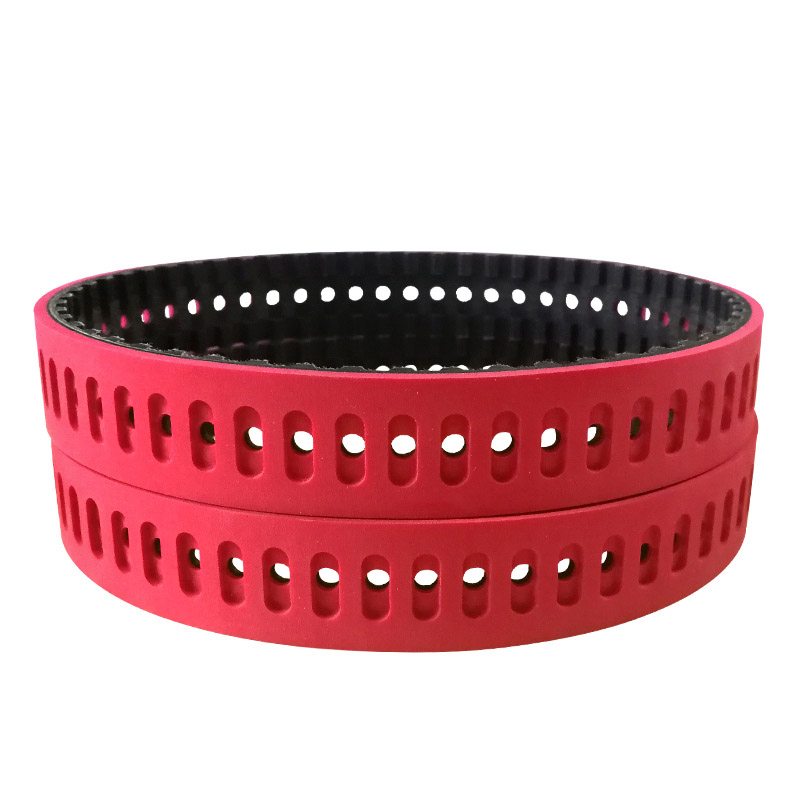

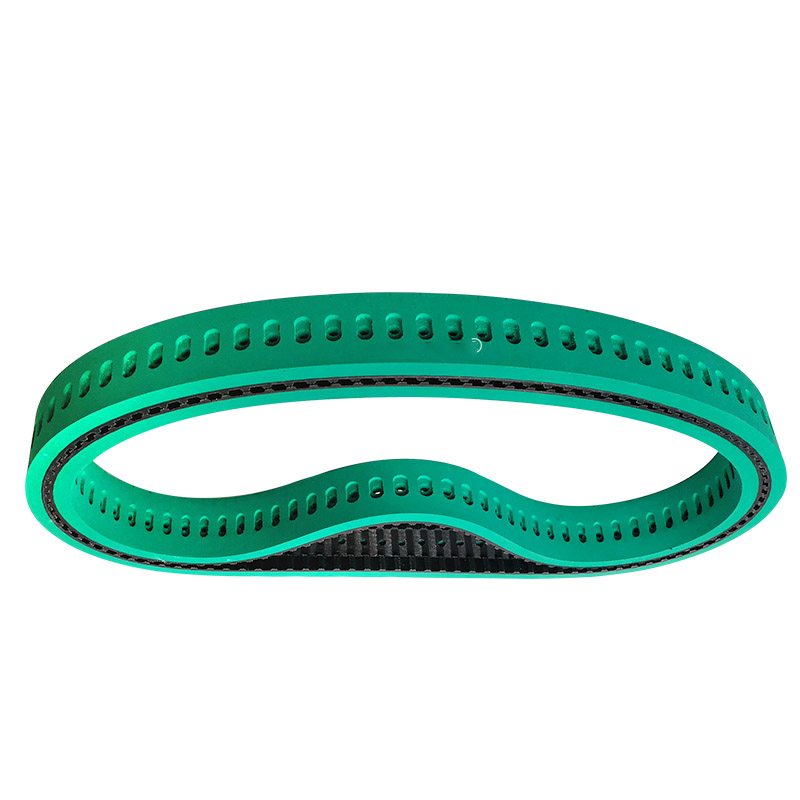

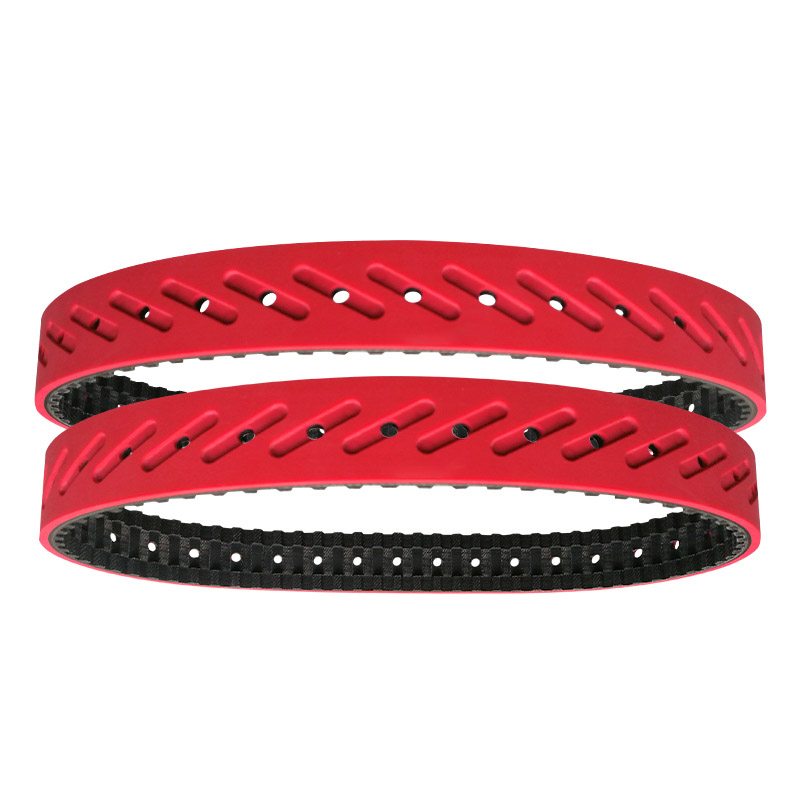

Special processing vacuum endless rubber timing belt with punching hole

The enduring Timing Belts are generally used for pouch pulling for various applications. An additional coating surface can also be added upon the belts, according to the applications. As for timing belt manufacturer, we ensure providing these timing belts in varied sizes for meeting the distinctive requirements of the different applications.

Rubber timing belt

Description

Type & Size	MXL,XL,L,H,XH,XXH,T2.5,T5,T10,T20,AT5,AT10,AT20,HTD2M- 20M,STPD/STS2M-14M,RPP/HPPD2M-14M; As per the demands of customers
Material	PU Rubber, Steel reinforced, Fabric, Kevlar cord.
Mechanical properties	Dimensional stability; Strong low; Low noise; High wear resistance; No need to maintain; High elastic
Working temperature	-20°C to +80°C, Instant high temperature: +110°C
Working Pressure	≤32Mpa Bud -Shape Ring≤50Mpa
Working Medium	Hydraulic Oil
Characteristics	Aging proof, waterproof, prevent UVA, Ozone-resistant, highly resistant to oil, acid and alkali corrosion resistance
Processing	punch/ slot / pattern / block / guide bar / profile
Colors	White,black,Red,Various
Application	Stone, ceramic,glass,electronics,aluminum,tobacco, textile, logistics,printing,packaging,paper products processing industries etc.
