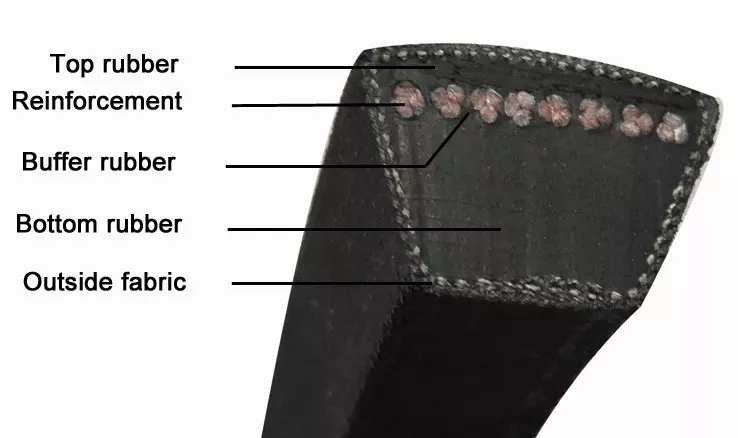

[caption id="attachment_707" align="alignnone" width="800"]

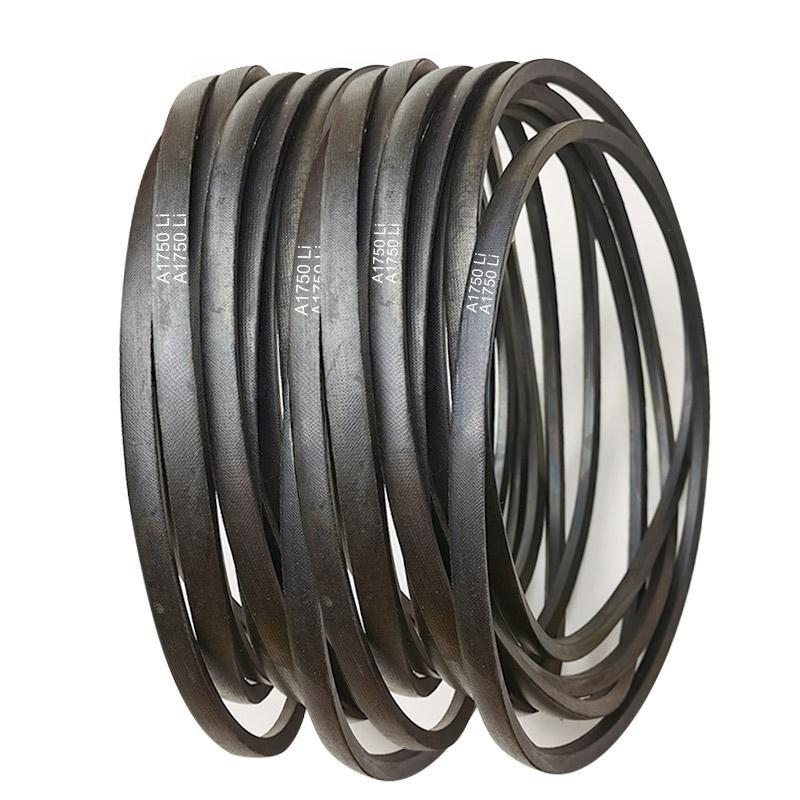

V-belt A/B/C/D type high-speed oil-proof belt SPZ/SPA/SPB/SPC[/caption][caption id="attachment_709" align="alignnone" width="750"]

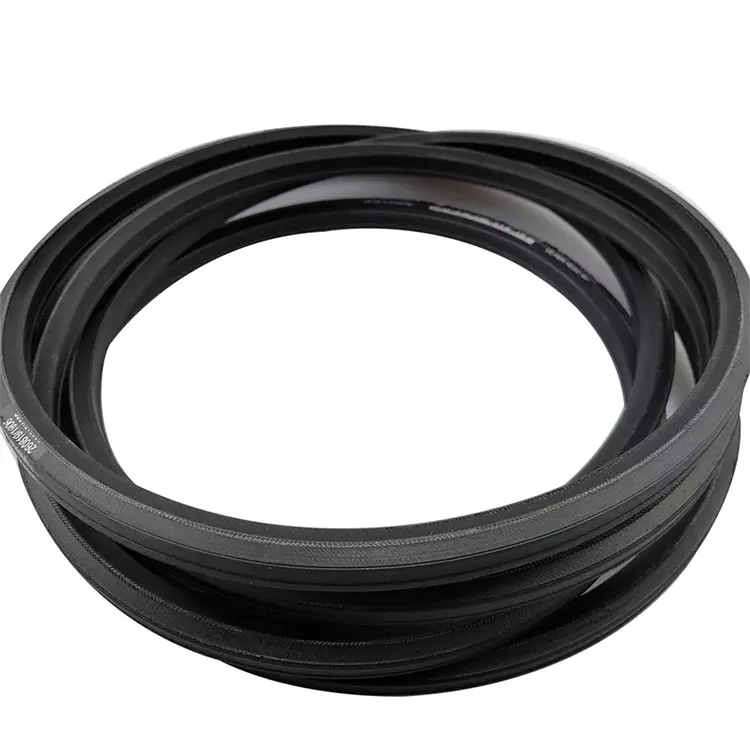

Triangular belt group V belt with ZABCDEF type 3V5V8V SPZ SPA SPB SPC custom 15 25J[/caption]

V-belt A/B/C/D type high-speed oil-proof belt SPZ/SPA/SPB/SPC V belt

Feature

Multiple special designs
Equal power transmission
High loads,low elongation and long service life
Excellent operational safety
Temperature range from -55℃ to 70℃
Static conductive to ISO1813
Oil,heat,Ozone and abrasion resistant

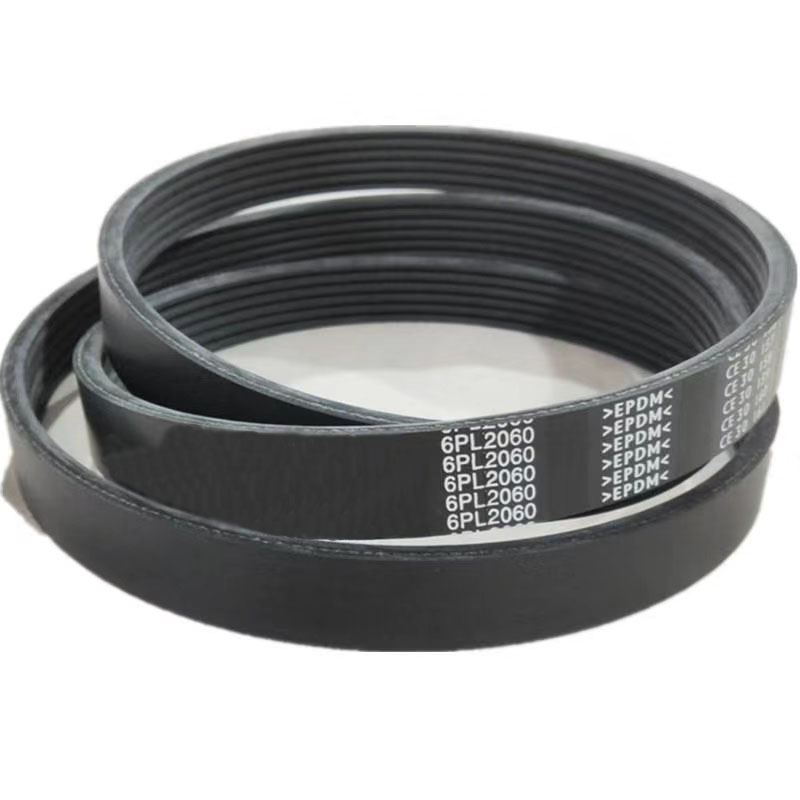

Other industrial belt

Description

The V-belt is the one with the largest output, the most varieties and the widest application among the transmission belts. The main equipment for power transmission and speed change of various mechanical devices is widely used in fields such as agricultural machinery, machine tools, automobiles, ships, and office equipment, and plays an increasingly important role.

V-belt A/B/C/D type high-speed oil-proof belt SPZ/SPA/SPB/SPC

Type	Top width	Pitch width	Height	Length range	Angle
Type	mm	mm	mm	mm	Angle
Z/FM/O	10	8.5	6	280—2480	40°
A	13	11	8	330—8000	40°
B	17	14	11	457—17000	40°
C	22	19	14	700—17000	40°
D	32	27	19	1100—17000	40°
E	38	32	23	3300—17000	40°

Type	Top width	Pitch width	Height	Length range	Angle
Type	mm	mm	mm	mm	Angle
3V	9.5	/	8	375–3353	40°
5V	16	/	13.5	795—17000	40°
8V	25.5	/	23	2500—17000	40°
SPZ	10	8	8	375—3353	40°
SPA	13	11	10	475—7200	40°
SPB	17	14	14	750—17000	40°
SPC	22	19	18	1350—17000	40°
