[caption id="attachment_876" align="alignnone" width="800"]

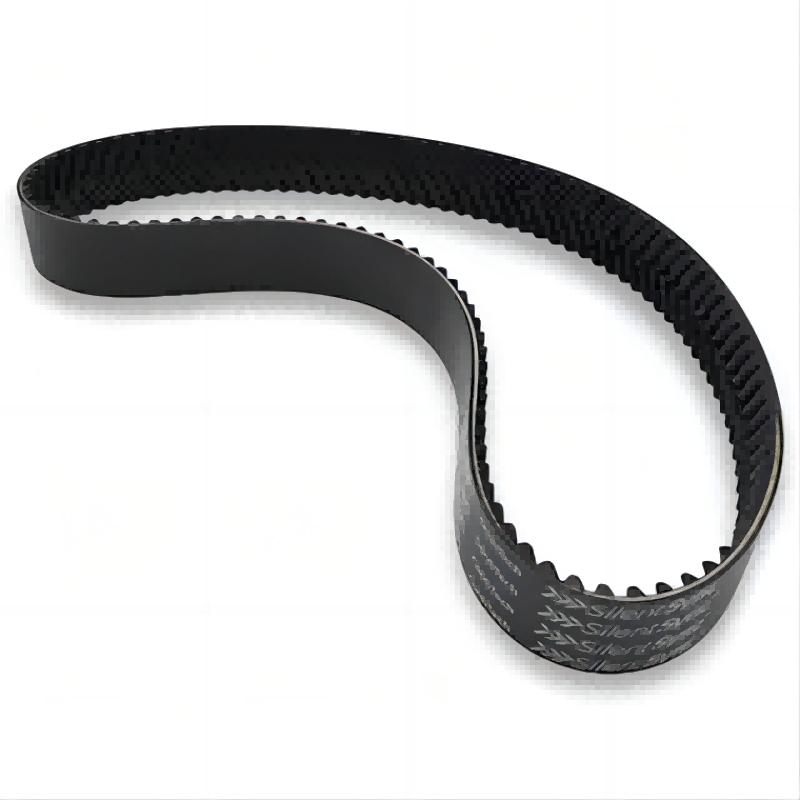

W-896 Timing Belts[/caption][caption id="attachment_877" align="alignnone" width="800"]

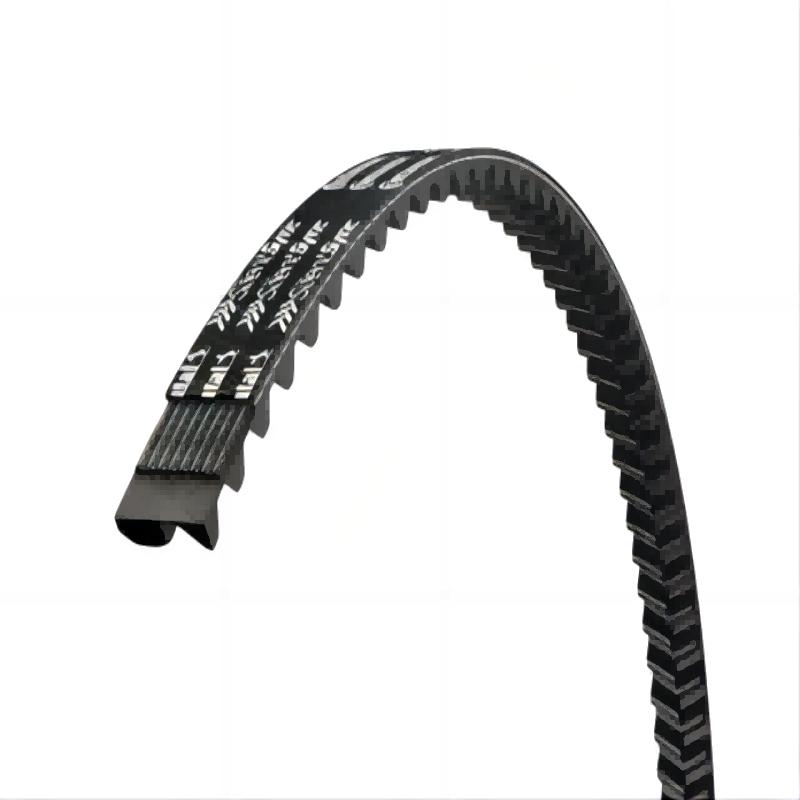

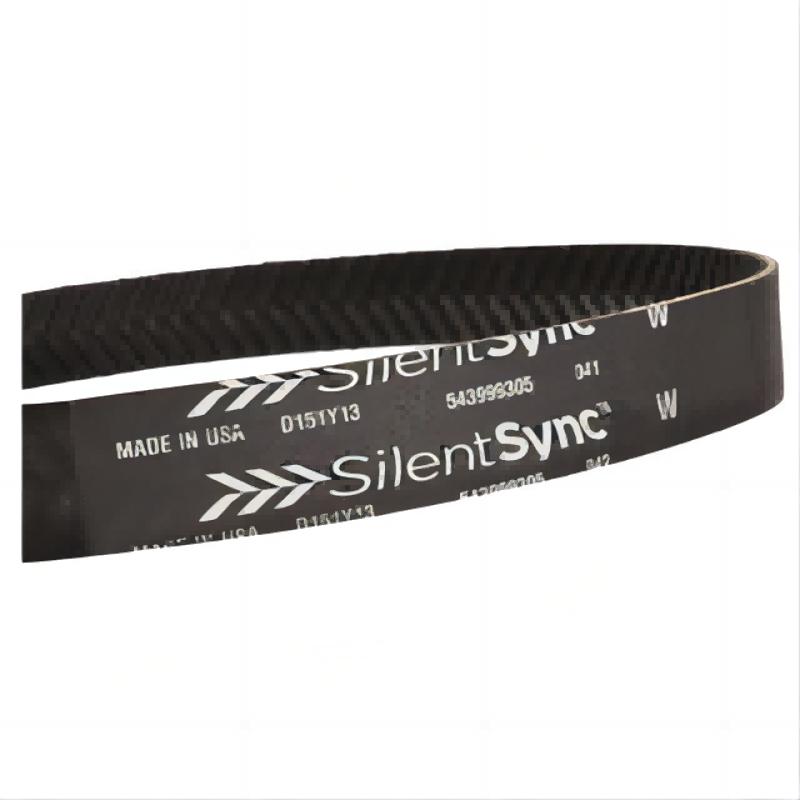

Continental | W-896 | Conti® SilentSync Belt[/caption]

W-896 – Continental ContiTech SilentSync Belt

Technical Data

Belt Width (b):32mm

Pitch Length (Lp/Lw):896mm

Belt Thickness (HS):5.5mm

Pitch Height (U):0.69mm

Number of Teeth (z):112

Tooth Pitch (T):8mm

Tooth Height (HT):3.01mm

Other industrial belt Tags: Custom products

Description

W-896 CONTI® SilentSync self-tracking timing belts are an excellent energy-efficient, maintenance free, low noise, and low vibration replacement for standard synchronous belts to upgrade any belt drive.

Specification:

Specially treated polyamide fabric
Synthetic rubber teeth
Aramid tensile member
Synthetic rubber backing
Helical Offset Tooth (HOT) design

The unique Helical Offset Tooth (HOT) profile, synthetic rubber backing, and aramid cord tension member all combine to deliver reduced noise by up to 19 dB, 80% higher strength than conventional synchronous belts, and vibrations up to 20% lower. Using aramid cord as the tensile member results in no ageing or elongation, eliminating the need for any re-tensioning.

Benefits:
