[caption id="attachment_1144" align="alignnone" width="1706"]

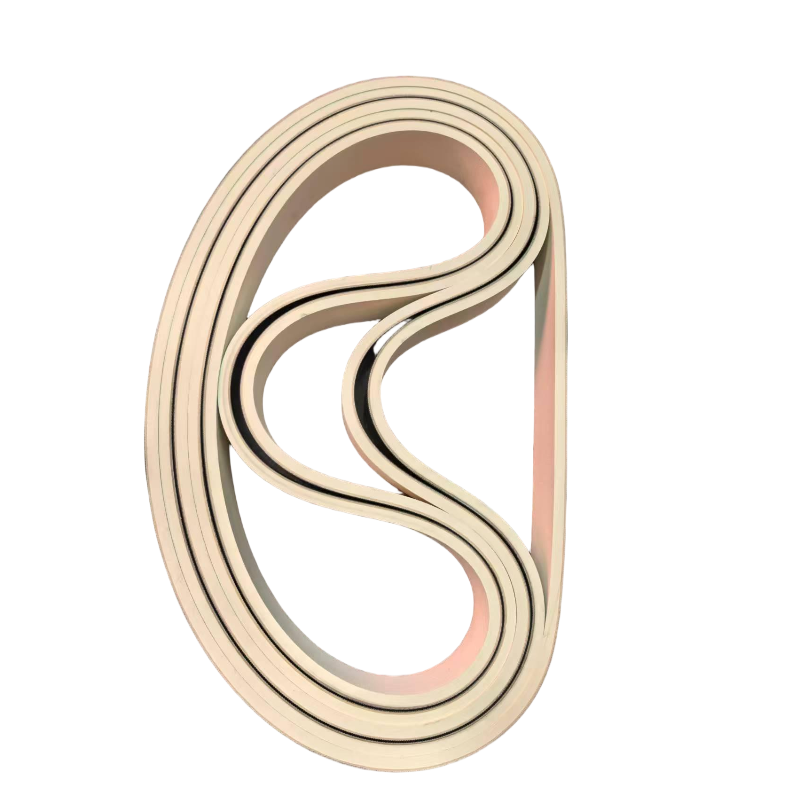

Wear-resistant white rubber flat belt[/caption]
[caption id="attachment_1141" align="alignnone" width="800"]

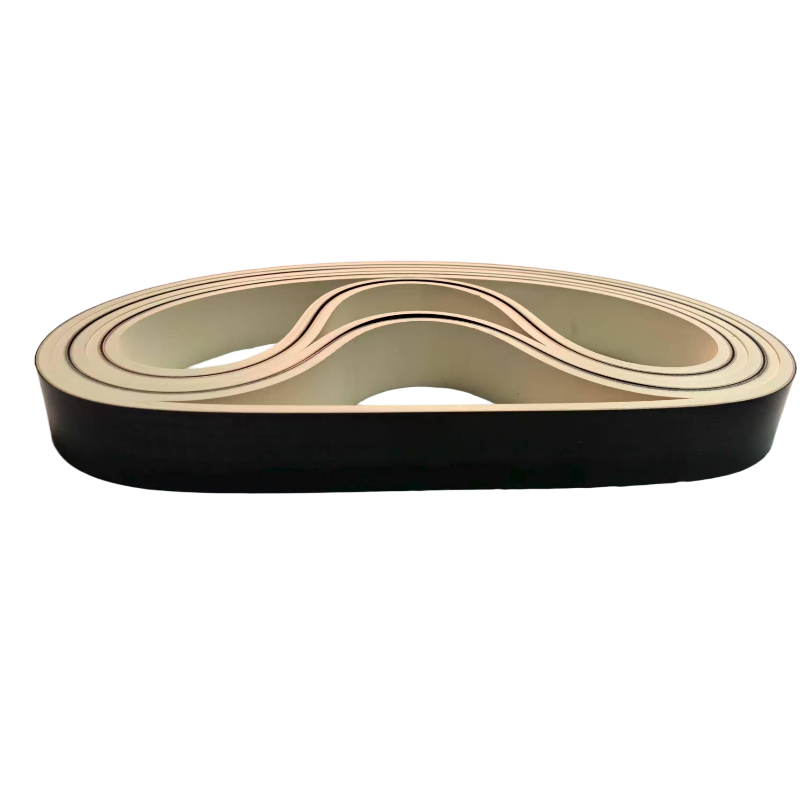

white rubber flat belt[/caption]Product advantages 1. Excellent process: the use of mold integrated vulcanization molding mature process, seamless no interface, longer service life.
2. High-quality neoprene: belt body using primary neoprene as the main raw material, with up to 90% rubber content, wear-resistant non-slip.
3. Anti-pull nylon core: the use of aramid nylon core for the anti-pull layer, so that the belt has good dimensional stability, strong anti-pull force 4. Wear-resistant rough cloth surface: the bottom belt with black thick nylon cloth surface for protection,non-slip wear, friction is not easy to wear.
|
Specification(Inner Length, Width, Thickness)
|
Customization
|
||
|
type
|
PK /PJ/PL/PM /Flat Belt
|
||
|
Color
|
Customization /red green white black
|
||
|
Traction Layer
|
Rubber: Imported NR
|
||
|
Bottom layer
|
Rubber: CR ;neoprene Reinforcement: Polyester Cord + Fabric
|
||
|
Mechanical Properties
|
High breaking load; High Wear Resistance; Low Elongation at Working Load; Aging Proof
|
||
|
Hardness
|
60-85°± 5°(cable traction) 60-85°± 5°(optical cable; plastic and pipe Traction etc.)
|
||
|
Max. temperature
|
+100℃
|
||
|
Delievery Time
|
Depend on Quantity and Model
|
||
|
Processing
|
Rubber Mixing, Winding,Rubber Adding, Cutting,Grinding, QC, Packaging and Delivering
|
||
|
Application
|
Cable, Optical cable, Plastic, Rubber tube, Pipe, Seal and Packaging industry etc.
|
||
