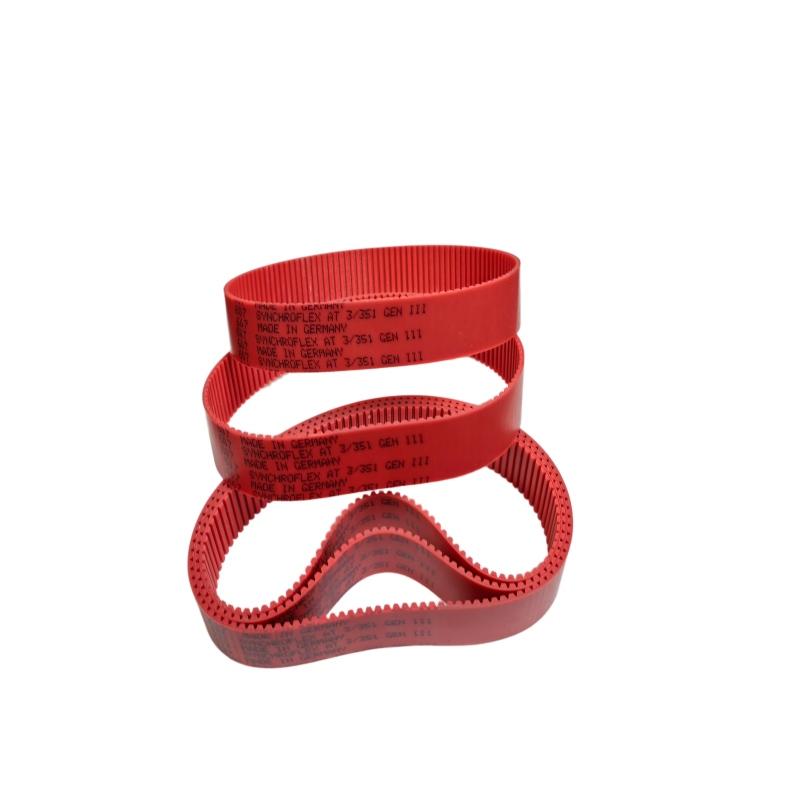

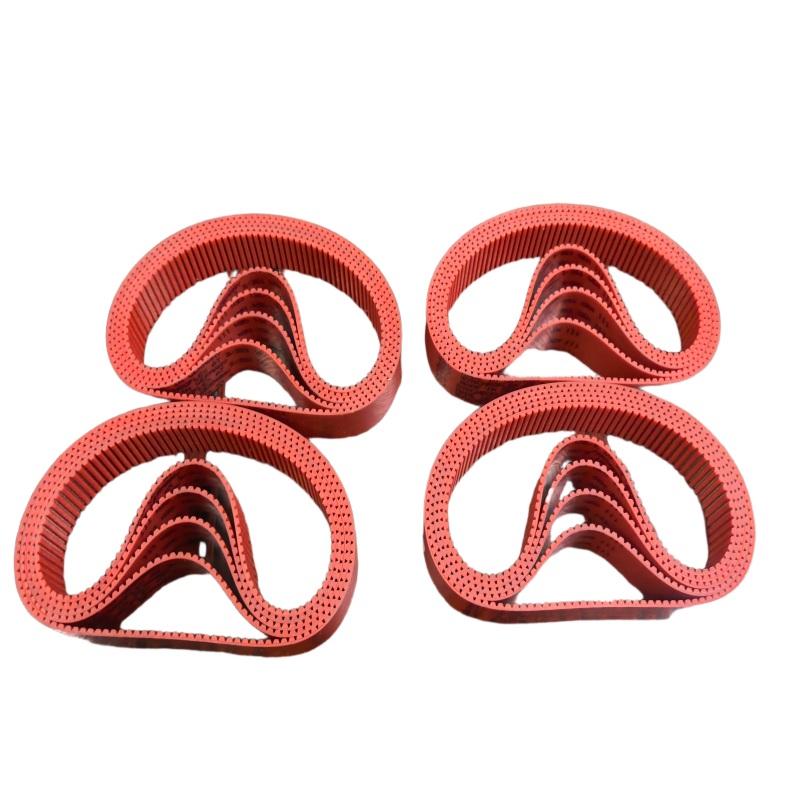

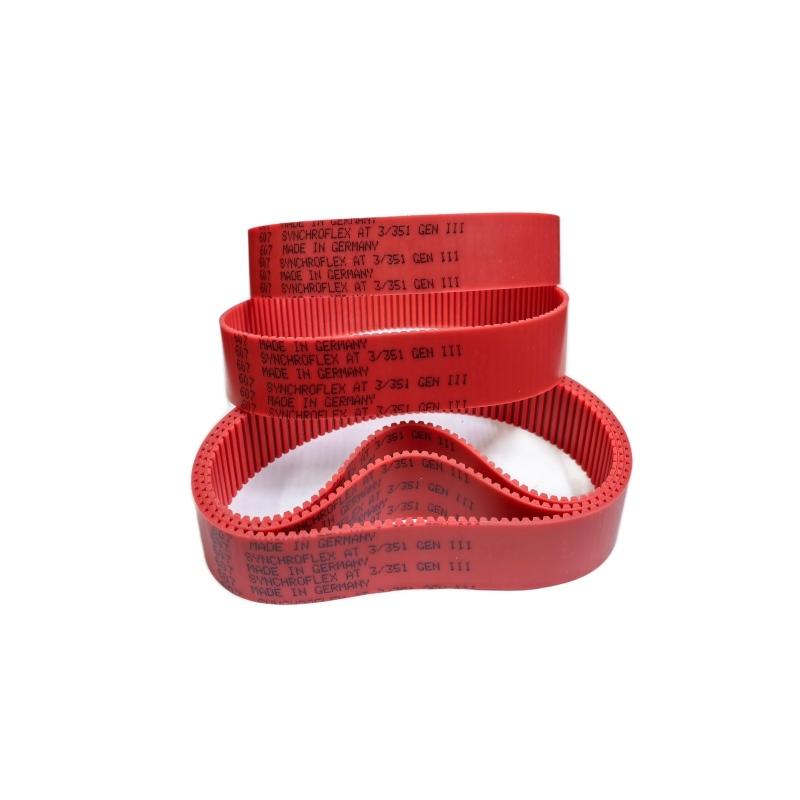

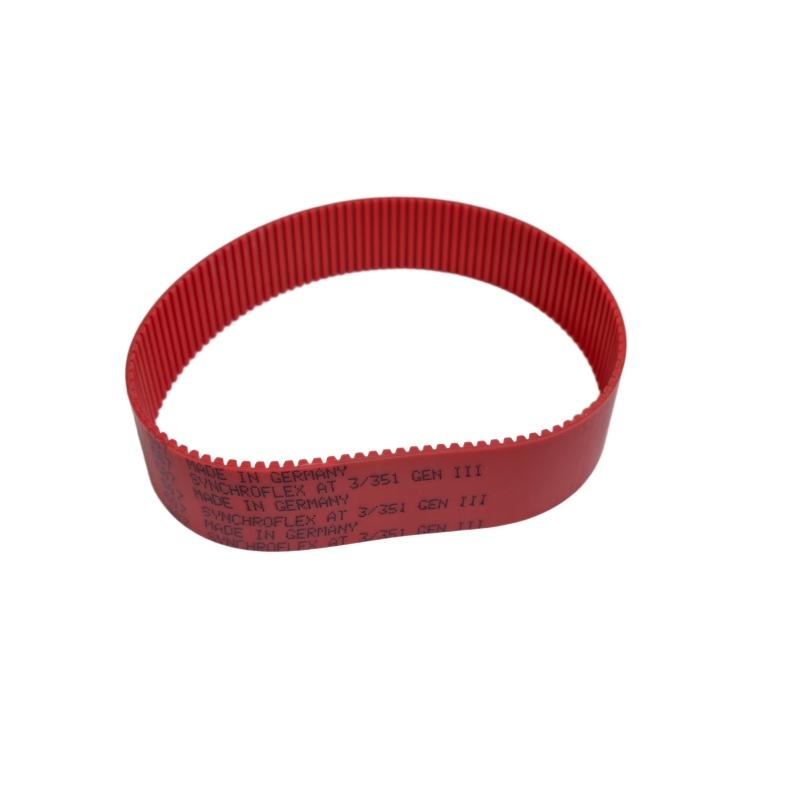

AT3/351 GEN III Continental Red Polyurethane Timing Belt

High capacity profile
Further development of the T profile resulted in the AT
profile. This type of belt is characterised by the larger
tooth shear strength resulting from the larger tooth
volume and the stronger tension members.
Further advantages:
• favourable tooth mesh
• strengthened tension members for constant pitch
• Improved performance up to 50 % as compared to
the T profile
• precise transmission of movement in conjunction
with synchronous pulleys with reduced or zero backlash
• reduction of meshing impacts or shocks
• compact drive dimensions

Polyurethane timing belt

Description

CONTI® SYNCHROFLEX polyurethane timing belts deliver best-in-class power transmission performance thanks to the uncompromising selection of high-grade components and the superior bonding strength between the hard-wearing polyurethane shell and the constantlength galvanised steel tension members.
The highly flexible production process is particularly suitable for manufacturing double-sided belts and high accuracy profiles on the belt back. A range of specialist compounds and materials are available to enable operation at low temperatures, in clean rooms and in the food industry.

Properties

* Constant length
* Wear resistant
* Up to 25% higher power transmission
* Temperature resistant from -30 °C to +100 °C (please ask for technical support for temperatures close to these limits)
* Highly flexible
* Lower noise with reduced belt width and equal performance
* Fatigue resistant
* Hydrolysis stabilized
* Resistant to ageing
* Resistant to simple oils, grease and petrol
* Conditionally resistant to acids and lyes
* Raw materials and production are silicone free

Perfil	Gama de longitudes Lw (mm)
AT 3	150 – 1011
AT 5	225 – 2000
AT 10	440 – 1940
ATP 10	630 – 1800
ATP 15	1125 – 1560
AT 20	1000 – 1960

APPLICATIONS
* Chain drives
* Drives where noise is an issue
* Drives where vibration is an issue
* Any application that requires quiet synchronization between driver and driven sprockets
