[caption id="attachment_1448" align="alignnone" width="800"]

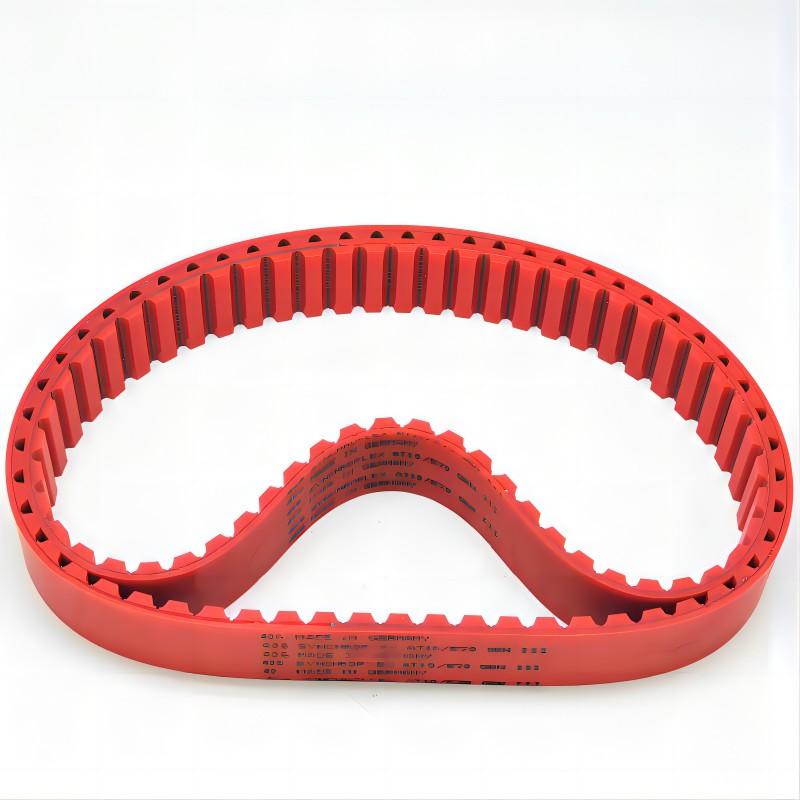

AT3/351 GEN III Continental Red Polyurethane Timing Belt
Heavy-duty polyurethane timing belts
AT3 Standard & GEN IIl SYNCHROFLEX
SYNCHROFLEX®. Timing Belt GEN III belt[/caption] [caption id="attachment_1445" align="alignnone" width="800"]

ContiR Synchroflex GENIll Timing belt endless AT3-GENIll CONTI AT3 351 20 Conti Synchroflex timing belt AT3-351-10-G3 Continental Generation 3 Synchroflex Polyurethane Timing Belt AT3-351-100 Continental Synchroflex Polyurethane Timing GEN III AT3 timing belt Polyurethane timing belt AT3 width 10mm SYNCHROFLEX GEN III truly endless timing belts AT 3 GEN III. AT 5 GEN III timing belt

AT3/351 GEN III Continental Red Polyurethane Timing Belt[/caption]

[caption id="attachment_1442" align="alignnone" width="800"]

ContiR Synchroflex GENIll Timing belt endless AT3-GENIll
CONTI AT3 351 20 Conti Synchroflex timing belt
AT3-351-10-G3 Continental Generation 3 Synchroflex Polyurethane Timing Belt
AT3-351-100 Continental Synchroflex Polyurethane Timing
GEN III AT3 timing belt
Polyurethane timing belt AT3 width 10mm
SYNCHROFLEX GEN III truly endless timing belts
AT 3 GEN III. AT 5 GEN III timing belt[/caption]

ContiR Synchroflex GENIll Timing belt endless AT3-GENIll belt

High capacity profileFurther development of the T profile resulted in the ATprofile. This type of belt is characterised by the largertooth shear strength resulting from the larger toothvolume and the stronger tension members.Further advantages:• favourable tooth mesh• strengthened tension members for constant pitch• Improved performance up to 50 % as compared tothe T profile• precise transmission of movement in conjunctionwith synchronous pulleys with reduced or zero backlash• reduction of meshing impacts or shocks• compact drive dimensions

Polyurethane timing belt

Description

CONTI® SYNCHROFLEX polyurethane timing belts deliver best-in-class power transmission performance thanks to the uncompromising selection of high-grade components and the superior bonding strength between the hard-wearing polyurethane shell and the constantlength galvanised steel tension members. The highly flexible production process is particularly suitable for manufacturing double-sided belts and high accuracy profiles on the belt back. A range of specialist compounds and materials are available to enable operation at low temperatures, in clean rooms and in the food industry.

Properties* Constant length * Wear resistant * Up to 25% higher power transmission * Temperature resistant from -30 °C to +100 °C (please ask for technical support for temperatures close to these limits) * Highly flexible * Lower noise with reduced belt width and equal performance * Fatigue resistant * Hydrolysis stabilized * Resistant to ageing * Resistant to simple oils, grease and petrol * Conditionally resistant to acids and lyes * Raw materials and production are silicone free

Perfil	Gama de longitudes Lw (mm)
AT 3	150 – 1011
AT 5	225 – 2000
AT 10	440 – 1940
ATP 10	630 – 1800
ATP 15	1125 – 1560
AT 20	1000 – 1960

APPLICATIONS * Chain drives * Drives where noise is an issue * Drives where vibration is an issue * Any application that requires quiet synchronization between driver and driven sprockets
